CASING

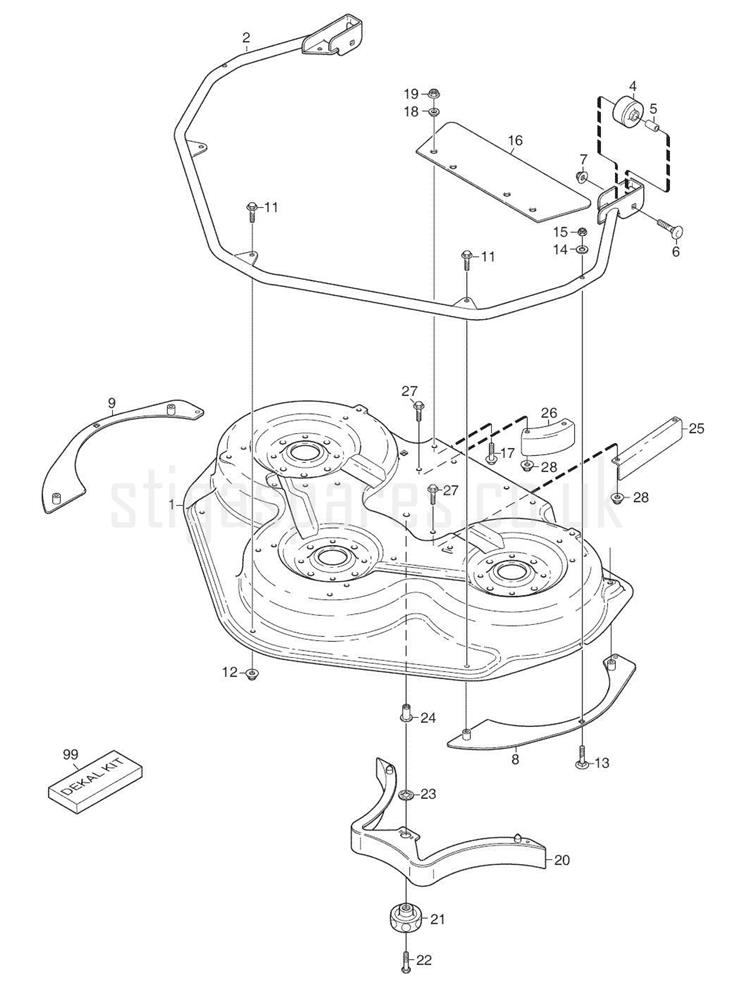

CASING assembly details for Stiga 13-2932-43 PARK 110 COMBI PRO EL DECK 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387561515/1DECK CASING 110C [GREY]£976.32 Add to
0021134-5977-02PROTECTION FRAME [GREY]£543.50 Add to
0041134-3434-01ROLLER£13.77 Add to
0051134-0041-04BUSH£11.46 Add to
0069897-1060-12SCREW M10 x 60£3.28 Add to
0079739-1031-22NUT M10£2.32 Add to
0081137-0249-01WEAR PLATE L/H£87.07 Add to
0091137-0249-02WEAR PLATE R/H£87.07 Add to
011112800815/0SCREW TE FL M8 x 16£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0139897-0640-12CARRIAGE BOLT M6 x 40£2.32 Add to
014112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
015112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0161134-5885-01RUBBER FLAP£11.98 Add to
017112800815/0SCREW TE FL M8 x 16£2.06 Add to
0181134-4185-01FLANGE WASHER£6.71 Add to
019112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0201134-5966-01MULCHING PLUG£110.66 Add to
021122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
022112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
023112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
0241134-5595-01BLIND RIVET NUT£8.32 Add to
0251134-5553-02GUIDE PLATE (STRAIGHT)£35.71 Add to
0261134-5970-01GUIDE PLATE (CURVED)£34.35 Add to
027112800815/0SCREW TE FL M8 x 16£2.06 Add to
028112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0991134-5594-02NO LONGER AVAILABLEN/A POA
