FRAME

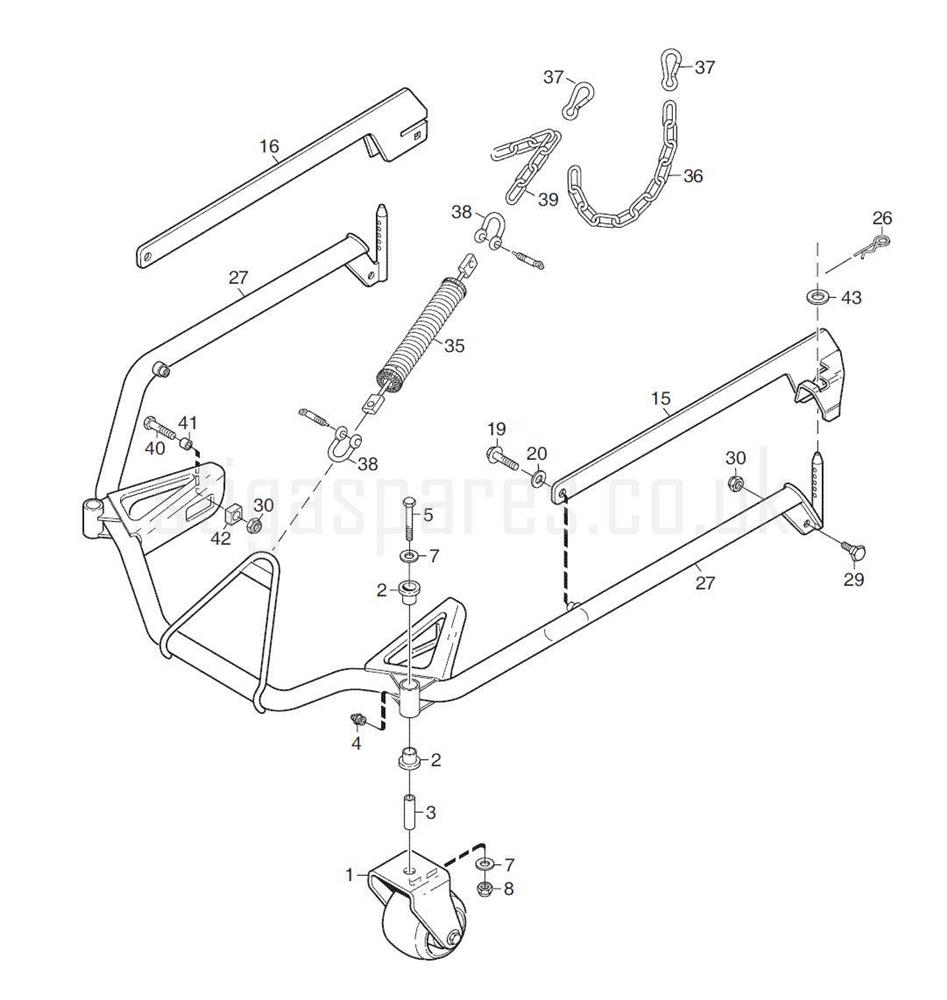

FRAME assembly details for Stiga 13-2932-44 PARK 110 COMBI PRO EL DECK 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0181134-5473-01Push Rod£18.48 Add to
0199570-0002-00ELBOW LINK£33.30 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0211134-5855-01PIVOT ARM£34.35 Add to
0221134-5858-01PIVOT BRACKET£32.83 Add to
023112692050/0HEX-HEAD SCREW£1.91 Add to
0241134-5127-01WASHER£4.52 Add to
026112800815/0SCREW TE FL M8 x 16£2.06 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0281134-5427-01FRONT AXLE [GREY]£91.78 Add to
0291134-5469-01BEARING HALF£12.00 Add to
0301134-5846-01FRONT BEARING PLATE£36.46 Add to
031112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
034112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0351134-5847-01SPRING£19.90 Add to
