Controls

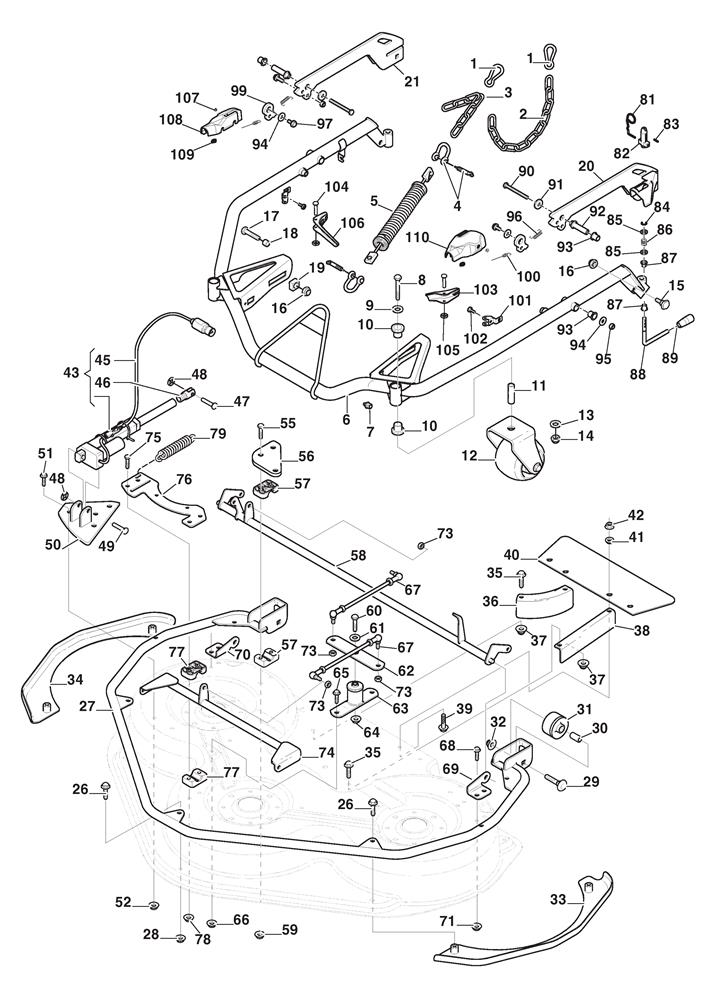

Controls assembly details for Stiga PARK 125 C PRO EL QF Cutting Deck 2D6312521/ST1 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5528-01SNAP HOOK£4.52 Add to
0021134-6368-03CHAIN [12 LINKS]£20.99 Add to
0031134-6368-02CHAIN [7 LINKS]£24.95 Add to
0041134-2629-01LIFT LINK£15.69 Add to
005387432003/0110/125 DECK LIFT SPRING£47.97 Add to
006387869269/0DECK FRAME TUBE 110/125 QF£637.78 Add to
007112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0089997-1090-12SCREW M6S M10X90£3.49 Add to
0099699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
010137038009/0WHEEL BUSH£6.09 Add to
0111134-5677-01SPACER£18.74 Add to
0121134-5884-01PIVOT WHEEL ASSEMBLY£67.57 Add to
0139699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
014112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0151134-0240-01SCREW£9.82 Add to
017112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
0181134-5626-01SPACER£9.28 Add to
0191134-7595-01SPACER£5.32 Add to
020387773549/0L/H DECK BRACKET 110/125 QF£135.19 Add to
021387773547/0R/H DECK BRACKET 110/125 QF£135.19 Add to
0269959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
027387869251/1PROTECTION FRAME [ASTRAL GREY]£470.41 Add to
028112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0299897-1060-12SCREW M10 x 60£3.28 Add to
0301134-0041-04BUSH£11.46 Add to
0311134-3434-01ROLLER£13.77 Add to
0329739-1031-22NUT M10£2.32 Add to
033387603353/0WEAR PLATE L/H£135.19 Add to
034387603351/0WEAR PLATE R/H£135.19 Add to
0359959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0361134-5554-02GUIDE PLATE (CURVED)£38.44 Add to
037112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0381134-5553-02GUIDE PLATE (STRAIGHT)£35.71 Add to
0399959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0401134-5885-01RUBBER FLAP£11.98 Add to
0411134-4185-01FLANGE WASHER£6.71 Add to
042112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
043118001003/1ELECTRIC LIFTER CD 110-125£393.97 Add to
045387149300/02 POLE FM MALE CONNECTOR ASSY L=835£32.06 Add to
0461134-6373-01ROD END (OBSOLETE)N/A
0479646-0098-22RIVET 8 x 32£2.87 Add to
048112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
0499646-0105-22RIVET£3.41 Add to
0501134-5981-01BRACKET ASSEMBLY£33.94 Add to
0519959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
052112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
055112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
0561134-5471-01BEARING PLATE-REAR£20.04 Add to
0571134-5469-01BEARING HALF£12.00 Add to
0581134-7603-01REAR AXLE ASSEMBLY£148.50 Add to
059112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
060112692050/0HEX-HEAD SCREW£1.91 Add to
0611134-5127-01WASHER£4.52 Add to
0621134-5855-01PIVOT ARM£34.35 Add to
063387204001/0PIVOT BRACKET 110/125£32.29 Add to
064112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0659959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
066112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
067387000312/0PUSH ROD£63.45 Add to
0689959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0691134-7490-01BRACKET L/H£42.53 Add to
0701134-7490-02BRACKET R/H£42.53 Add to
071112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
074387000151/0FRONT AXLE [DARK GREY]£94.13 Add to
075112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
076337546673/0FRONT BEARING PLATE£34.35 Add to
0771134-5469-01BEARING HALF£12.00 Add to
078112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0791134-5847-01SPRING£19.90 Add to
081137430114/0SPRING CLIP CD110/125QF£11.59 Add to
081137510327/2DECK PIN 110/125 QF£16.22 Add to
082137510327/2DECK PIN 110/125 QF£16.22 Add to
083112642450/0SPRING PIN D=3 x 14£1.79 Add to
084112000955/0CIRCLIP D=8£1.79 Add to
085325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
086122430210/0SPRING£2.06 Add to
087325038009/0BUSH£2.18 Add to
088137315013/0HEIGHT ADJUST LEVER 110/125 QF£9.78 Add to
089137394204/0HEIGHT ADJUST KNOB 110/125 QF£5.29 Add to
090112692050/0HEX-HEAD SCREW£1.91 Add to
091125670007/0FIXING WASHER£2.06 Add to
092137510325/0FULCRUM PIN 110/125 QF£16.22 Add to
093137038011/0BUSH£3.72 Add to
096137430113/0TRACTION SPRING£5.87 Add to
097112800815/0SCREW TE FL M8 x 16£2.06 Add to
099337022755/0RATCHET PAWL 110/125 QF£25.67 Add to
099337022757/0RATCHET PAWL 95/100/105QF£17.45 Add to
100187000213/0UNLOCK COMMAND CABLE 110/125 QF£22.76 Add to
100187000221/0UNLOCK COMMAND CABLE 110/125 QF£23.31 Add to
101337785055/0DECK LEVER SUPPORT 110/125 QF£3.41 Add to
1029893-0616-16SCREW M6 x 16£2.47 Add to
103337315011/0L/H DECK UNLOCK LEVER 110/125 QF£5.87 Add to
104112400031/0PIN D=5£2.06 Add to
105112604897/0STARLOCK WASHER D=5£2.06 Add to
106337315010/0R/H DECK UNLOCK LEVER 110/125 QF£5.87 Add to
107337120284/0HOOK COVER CAP£2.74 Add to
108337600041/0R/H HOOK DECK COVER-110/125 QF£10.23 Add to
109337505501/1CABLE GUIDE£1.90 Add to
110337600042/0L/H HOOK DECK COVER-110/125 QF£10.33 Add to
