Handle

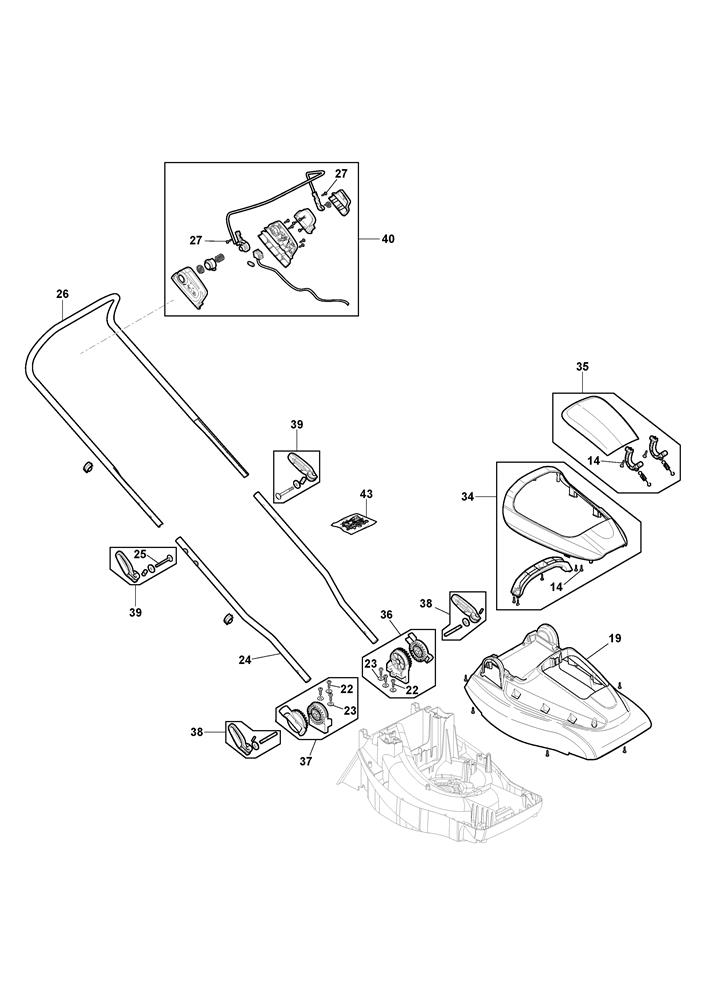

Handle assembly details for Stiga Collector 140 AE Kit (291382068/ST1) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
014112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
019118811214/0DECK COVER [GREY]£25.03 Add to
022112728535/0SCREW TC SLZ 5.2 x 25£2.06 Add to
0232312150WASHER 5.5 x 15 x 1.5£1.79 Add to
024118811189/0LOWER HANDLE£14.52 Add to
025112815255/0CUP SQUARE BOLT M6 x 20£1.79 Add to
026118811190/0FLAT UPPER HANDLE£34.35 Add to
027112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
034118811219/0AESTHETIC COVER KIT£16.00 Add to
035118811220/0BATTERY COVER ASSEMBLY£18.00 Add to
036118811200/0L/H HANDLE JOINT KIT£10.97 Add to
037118811201/0R/H HANDLE JOINT KIT£10.97 Add to
038118811368/0HANDLE KNOB KIT£23.59 Add to
039118811368/0HANDLE KNOB KIT£23.59 Add to
040118811204/0SAFETY SWITCH LEVER KIT£14.46 Add to
043118811368/0HANDLE KNOB KIT£23.59 Add to
