Transmission

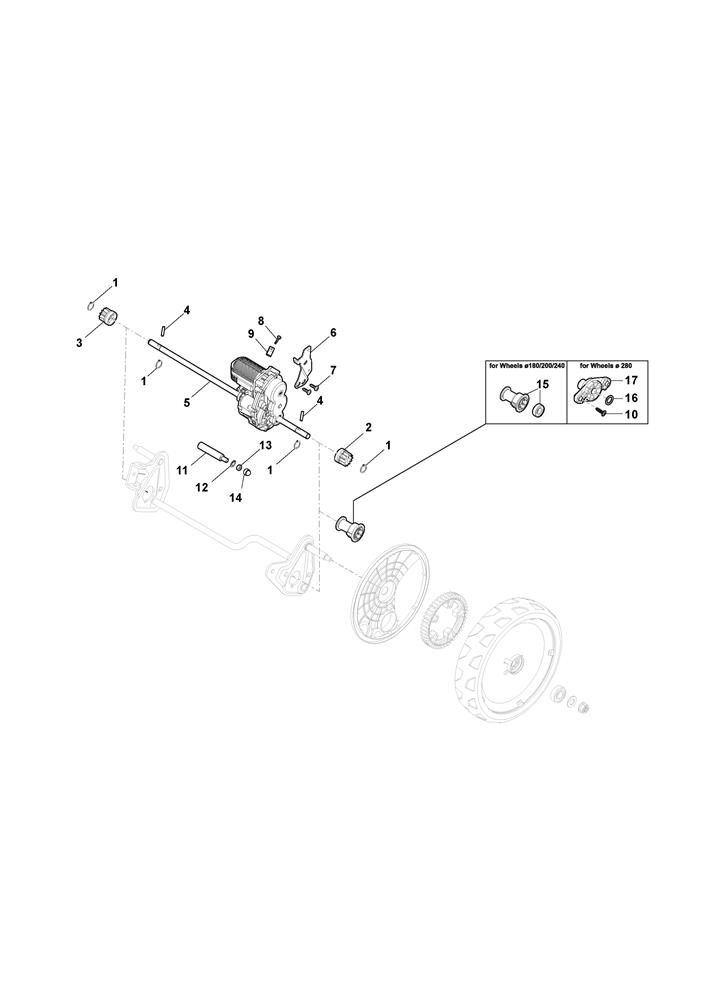

Transmission assembly details for Stiga Combi 53 SQ MAE (295536868/ST1) 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112608600/0	CIRCLIP D=12	£2.08	Add to
002	122570134/0	LEFT PINION Z12 GEAR	£7.92	Add to
003	122570133/0	RIGHT PINION Z12 GEAR	£7.92	Add to
004	122753003/1	ELECTR.TRACT.PIN D=5.2 x 30 BURNISHING	£2.86	Add to
005	181003131/0	GEARBOX GT-ME512 56V CR/CP1	£177.43	Add to
006	322778523/1	BRACKET FIX ELECT.TRANSMIS. CR48-MP1/2	£7.51	Add to
007	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
008	112728210/0	SCREW TORX M4 x 10	£1.79	Add to
009	118390022/0	CONDUIT CLIP	£2.06	Add to
010	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
011	122524363/0	STOP PIN	£19.22	Add to
012	112540040/0	EXTERNAL TOOTHED WASHER M6	£1.79	Add to
013	112292100/0	HEXAGON NUT M6	£1.47	Add to
014	118203853/0	BLACK NUT CAP M6	£3.00	Add to
015	381001133/0	AXLE BUSH	£13.91	Add to
016	112521371/0	WASHER M12 13 x 20 x 2	£2.06	Add to
017	322042067/0	AXLE BUSH	£4.52	Add to
