Deck and height adjusting

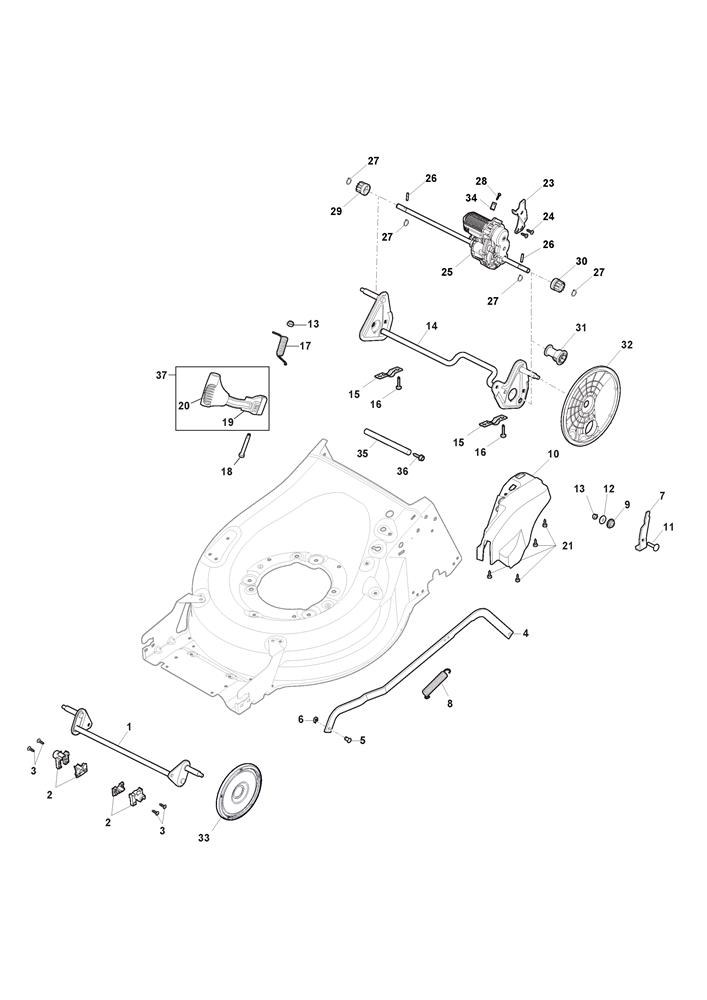

Deck and height adjusting assembly details for Stiga Combi 950 SQ AE (294507898/ST1) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302913/1ASS.FRONT AXLE WHEELS D180 CTF MP1 50£31.63 Add to
002322785305/1AXLE SUPPORT£3.00 Add to
003112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
004322869695/1HEIGHT ADJUST ROD 180/240 MP1 50£34.35 Add to
005122519820/0PIN£2.47 Add to
006112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
008122450480/0SPRING£2.32 Add to
009122517873/0BUSH£3.41 Add to
010322055329/0HEIGHT ADJUST COVER [BLACK]£11.18 Add to
011112815270/0SCREW M6 x 25£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014381302895/1ASS.REAR WHEELS AXLE D240 MP1 50 TR£31.63 Add to
015322545152/0AXLE BRACKET£2.06 Add to
016112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
017122446192/0SPRING£2.47 Add to
018122534131/0PIN£2.06 Add to
019322322915/0REAR HEIGHT ADJUST LEVER CTF D240 CR£5.73 Add to
020322394528/0HEIGHT ADJUST KNOB (BLACK)£5.75 Add to
021112728904/0SELF-TAPPING SCREW K60 X 22 WM1451£1.95 Add to
023322778527/0BRAKE FIX£8.03 Add to
024112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
025181003136/0GEARBOX GT-72V BLDC£168.59 Add to
026122753000/0PIN D=5.2 x 25.65£2.06 Add to
027112608600/0CIRCLIP D=12£2.08 Add to
028112728210/0SCREW TORX M4 x 10£1.79 Add to
029122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
030122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
031381001133/0AXLE BUSH£13.91 Add to
032322600205/1INNER WHEEL COVER D=240£4.11 Add to
033322600247/0INNER WHEEL COVER D=180£4.66 Add to
034118390023/0WIRE CLIP D.9 FASTPOINT 6566AA00£2.66 Add to
035322608567/1REINFORCEMENT CHASSIS MP1 50-55 VAR. ZNN£8.04 Add to
036112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
037381003457/1HEIGHT ADJ.LEVER WHEELS D240 CR STIGA£13.91 Add to
