Electric Motor

Electric Motor assembly details for Stiga Combi 950 SQ AE (294507898/ST1) 2021 model

Parts list

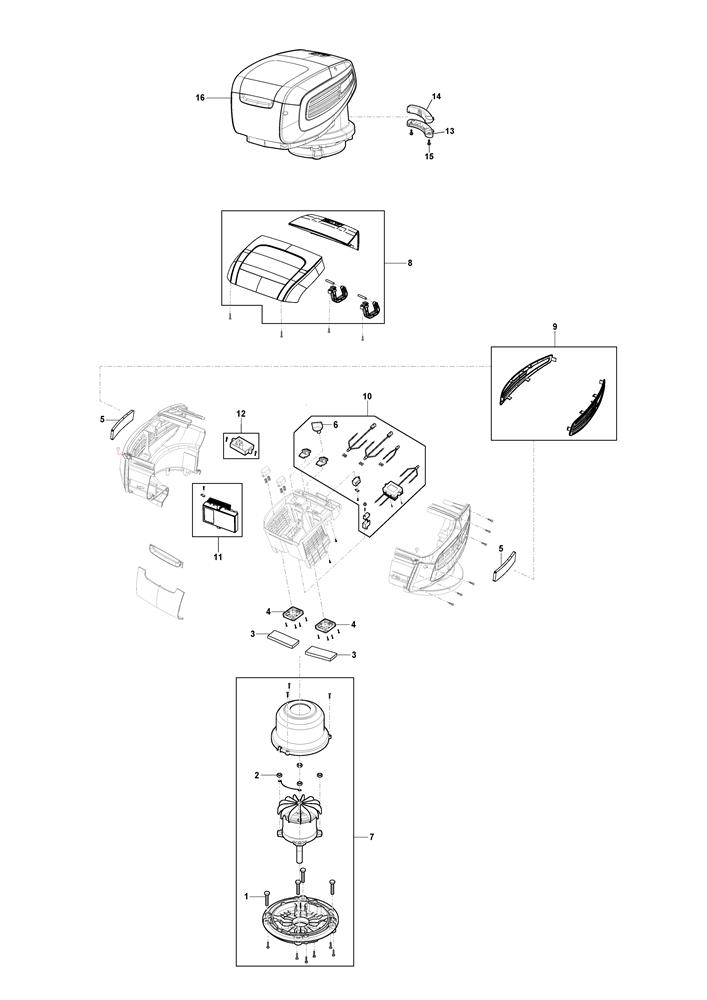

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112793600/0HEX-HEAD SCREW M8 x 35£2.06 Add to
002112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
003118811245/0LOWER AIR FILTER£3.88 Add to
004118811246/0LEFT FAN£10.85 Add to
005118811248/0UPPER AIR FILTER£4.01 Add to
006322076572/0SAFETY KEY POWERHEAD 48V£9.84 Add to
007118811288/1MOTOR ASSEMBLY [PH 900]£279.98 Add to
008118811282/0BATTERY COVER KIT£41.38 Add to
009118811289/0AIR FILTER COVERS KIT£6.16 Add to
010118811290/0PH 900 - POWER SUPPLY CIRCUIT ASSY£50.75 Add to
011118811291/0CONTROL BOARD ASSEMBLY£503.34 Add to
012118811292/0TRANSMISSION CIRCUIT ASSEMBLY£207.41 Add to
013322722860/0LOWER PROTECTION CABLES PLUG POWERHEAD£2.47 Add to
014322722861/0UPPER PROTECTION CABLES PLUG POWERHEAD£2.18 Add to
015112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
016381270023/1POWERHEAD 48V STIGA 900 SERIES-DUAL£543.52 Add to
017118811641/0PH 900 - MOTOR SEAT£11.17 Add to
