HANDLE

HANDLE assembly details for Stiga AERO 132E KIT(298302068/UKS) 2022 model

Parts list

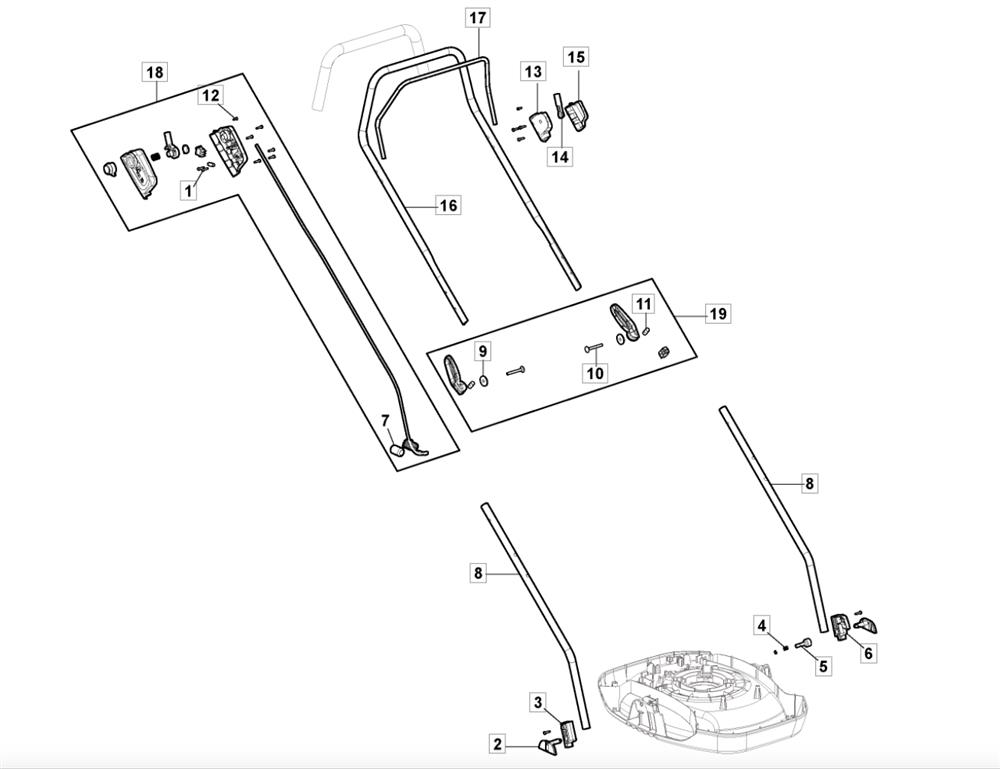

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
002118811423/0HANDLE FIXING PLUG£1.78 Add to
003118811424/0HANDLE R/H SUPPORT£1.71 Add to
004118811426/0HANDLE FIXING SPRING£1.71 Add to
005118811427/0HANDLE FIXING PIN£1.78 Add to
006118811428/0HANDLE L/H SUPPORT£2.39 Add to
008118811439/0LOWER HANDLE£9.82 Add to
009112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
010112815255/0CUP SQUARE BOLT M6 x 20£1.79 Add to
011112292100/0HEXAGON NUT M6£1.47 Add to
012112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
013118811447/0SWITCH LEVER R/H COVER£2.39 Add to
014118811448/0SWITCH LEVER SUPPORT£1.71 Add to
015118811449/0SWITCH LEVER L/H COVER£2.39 Add to
016118811190/0FLAT UPPER HANDLE£34.35 Add to
017118811450/0SAFETY SWITCH LEVER£9.82 Add to
018118811467/0SAFETY SWITCH KIT£47.71 Add to
019118811368/0HANDLE KNOB KIT£23.59 Add to
