HOUSING

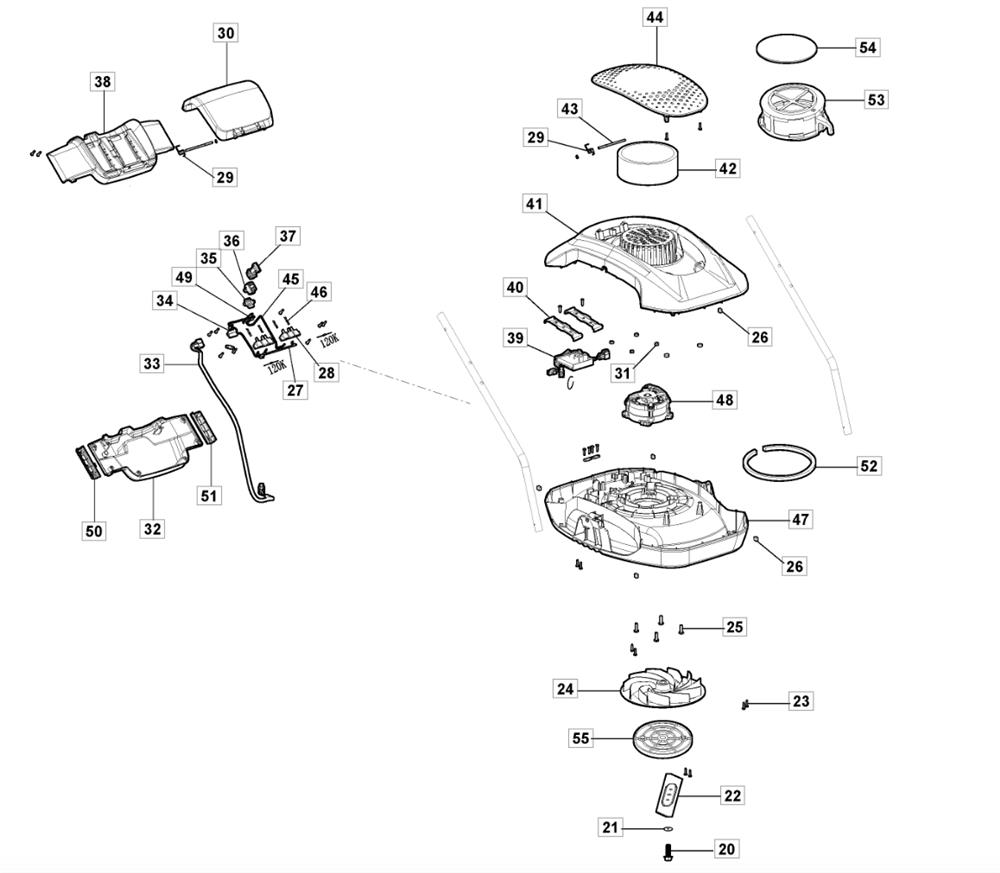

HOUSING assembly details for Stiga AERO 132E KIT(298302068/UKS) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
020118811466/0BLADE BOLT M10 X 1.25 X 50£3.96 Add to
021112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
022118811421/0T 300 LI 20 BLADE£10.57 Add to
023112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
024118811422/0BLADE HOLDER (OBSOLETE)N/A
025112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
026118811425/0CHASSIS FILTER£7.30 Add to
027118811429/0ELECTRIC WIRE£2.74 Add to
028118811080/0SAB 100 AE BATTERY CONNECTOR£5.46 Add to
029118811431/0BATTERY DOOR SPRING£1.71 Add to
030118811432/0BATTERY DOOR£15.34 Add to
031112292100/0HEXAGON NUT M6£1.47 Add to
032118811433/0BATTERY LOWER HOUSING£12.28 Add to
033118811434/0ELECTRIC CABLE£5.26 Add to
034118811435/0ELECTRIC CABLE ASSEMBLY£14.52 Add to
035118811436/0KEY SOCKET PLATE£1.71 Add to
036118811437/0KEY SOCKET£1.71 Add to
037118811099/0SAFETY KEY£5.73 Add to
038118811438/0BATTERY UPPER HOUSING£17.04 Add to
039118811440/0PCB BOARD£97.03 Add to
040118811441/0PCB FLANGE£2.33 Add to
041118811442/0MOTOR COVER (YELLOW)£32.24 Add to
042118811444/0AIR FILTER£4.16 Add to
043118811445/0CYLINDRICAL PIN£3.89 Add to
044118811446/0TOP COVER (GREY)£15.54 Add to
045118811429/0ELECTRIC WIRE£2.74 Add to
046118811454/0BATTERY CONNECTOR SPRING£1.71 Add to
047118811451/0CHASSIS (GREY)£50.97 Add to
048118811452/0ELECTRIC MOTOR£131.78 Add to
049118811455/0SAFETY KEY CONTACT£1.44 Add to
050118811456/0R/H BATTERY LOWER HOUSING£1.71 Add to
051118811457/0L/H BATTERY LOWER HOUSING£1.71 Add to
052118811461/0MOTOR FILTER£4.51 Add to
053118811462/0AIR FILTER SUPPORT£5.59 Add to
054118811463/0UPPER FILTER£4.51 Add to
055118811465/0CUTTING HEIGHT SPACER£6.55 Add to
