GRASSCATCHER

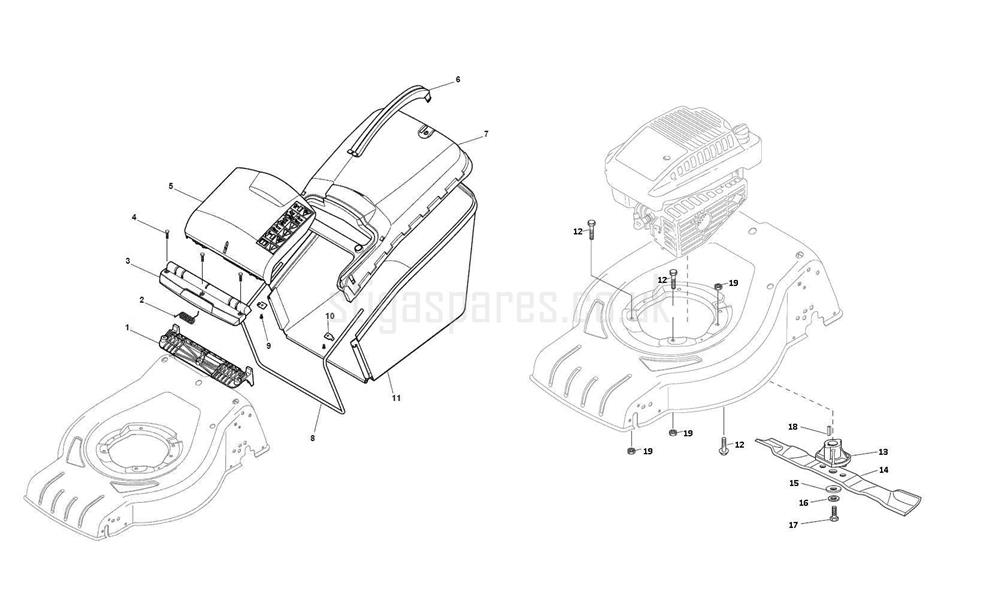

GRASSCATCHER assembly details for Stiga COMBI 48 B (B&S 550 Series) 295485024/S12 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322785331/0	DEFLECTOR SUPPORT [BLACK]	£6.94	Add to
002	122450464/0	DEFLECTOR SPRING	£2.18	Add to
003	322109556/0	DEFLECTOR FIXING [YELLOW]	£4.82	Add to
004	112728699/0	SELF-TAPPING SCREW K60 x 22	£2.06	Add to
005	322600214/1	DEFLECTOR [YELLOW]	£12.96	Add to
006	322393646/0	GRASSCATCHER HANDLE [YELLOW]	£5.60	Add to
007	381486029/0	GRASSCATCHER TOP-FULL INDICATOR [GREY]	£31.10	Add to
008	122608561/0	GRASSCATCHER FRAME	£13.24	Add to
009	112728714/0	SELF-TAP SCREW K50 x 20	£2.40	Add to
010	322545159/0	FIXING PLATE	£2.06	Add to
011	181002318/0	GRASSBAG [BLACK]	£38.44	Add to
012	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
013	122463012/4	BLADE BOSS D=22.2	£8.73	Add to
015	122160400/0	SPRING WASHER 50 x 2 x 10.2	£2.18	Add to
016	112523080/0	WASHER M10 11 x 30 x 2.5	£2.06	Add to
017	112735698/0	HEX-HEAD SCREW 3/8" x 2"	£2.02	Add to
018	112139100/0	WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40	£2.06	Add to
019	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
