CHASSIS

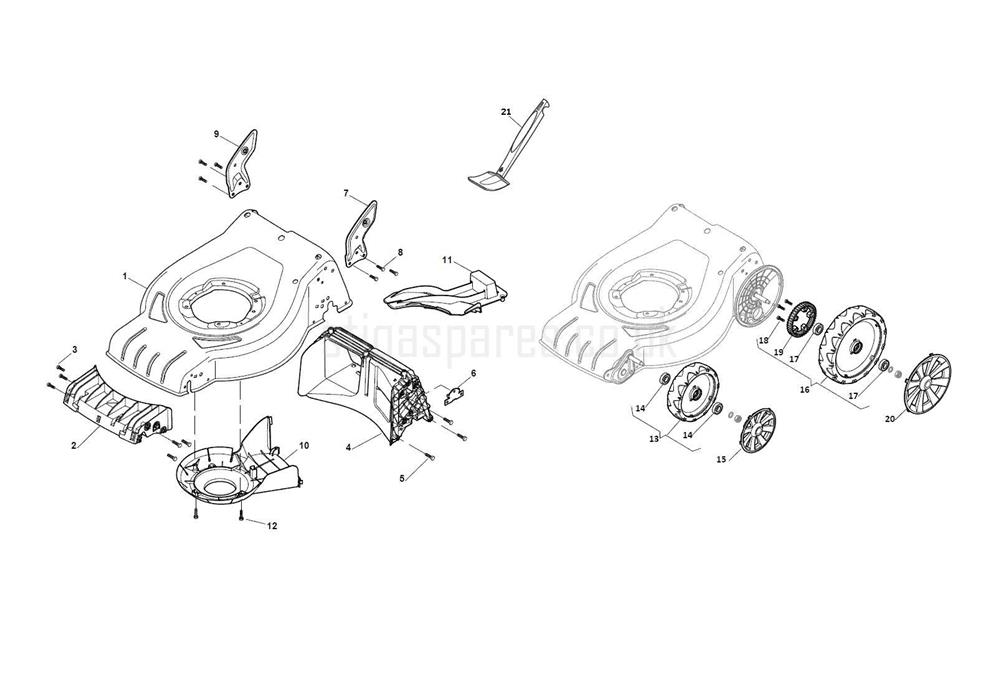

CHASSIS assembly details for Stiga COMBI 48 SB (B&S 550 Series) 295486024/S12 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004024/0STEEL DECK CR48 [BLACK]£76.86 Add to
002322108301/1PLASTIC FRONT BAFFLE£16.79 Add to
003112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
004322108392/0PLASTIC REAR BAFFLE£20.72 Add to
005112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
006322545213/0FIXING PLATE£2.06 Add to
007381005139/0LEFT HANDLE BRACKET£7.10 Add to
008112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
009381005137/0RIGHT HANDLE BRACKET£6.69 Add to
010322060242/2BELT PROTECTION GUARD CR48£11.59 Add to
011322140239/1MULCHING PLUG [CRUISER 48]£11.87 Add to
012112728903/0SCREW£1.69 Add to
013381007455/1WHEEL ASSEMBLY 180mm£17.26 Add to
014119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
015322110647/0HUB CAP D=180 [YELLOW]£5.50 Add to
016381007467/0USE 381007467/1N/A POA
017119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
018112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
019322120117/0PLASTIC DRIVE GEAR D=240£5.32 Add to
020322110648/0HUB CAP D=240 [YELLOW]£4.59 Add to
021113300215/0SCRAPER£7.10 Add to
