TRANSMISSION

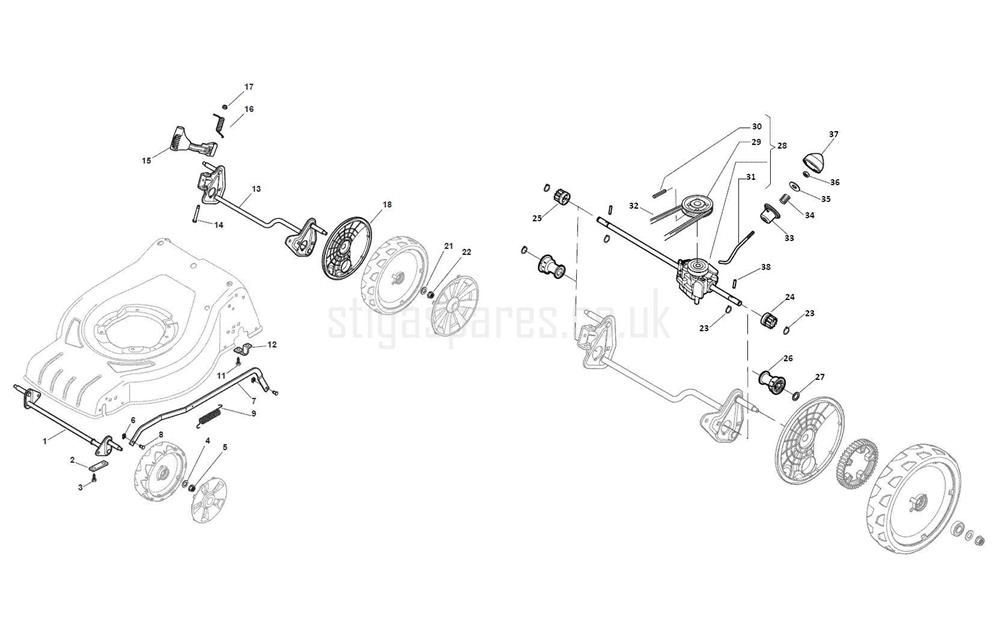

TRANSMISSION assembly details for Stiga COMBI 48 SB (B&S 550 Series) 295486024/S12 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302821/0FRONT WHEELS AXLE D=180 CR 48£28.90 Add to
002322545142/0REAR WHEEL AXLE STOP PLATE£2.06 Add to
003112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
004112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
007322869683/0WHEEL CONTROL ROD 180/240 CRUISER 48 B&S£18.95 Add to
008122519820/0PIN£2.47 Add to
009122446193/0SPRING£4.99 Add to
011112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
012322545152/0AXLE BRACKET£2.06 Add to
013381302817/0ASS.REAR WHEELS AXLE D240 CRUISER TR£32.99 Add to
014122534131/0PIN£2.06 Add to
015381003357/0REAR HEIGHT ADJUST LEVER£6.79 Add to
016122446192/0SPRING£2.47 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018322600205/1INNER WHEEL COVER D=240£4.11 Add to
021112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023112608600/0CIRCLIP D=12£2.08 Add to
024122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
025122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
026322042066/0AXLE BUSH£1.91 Add to
027112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
028181003092/0GEARBOX [BLACK]£114.74 Add to
029122601909/0PULLEY£6.01 Add to
030112645700/0PIN£2.06 Add to
031122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
032135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
033122041957/1SPRING GUIDE BUSH£2.06 Add to
034122450063/0SPRING£2.06 Add to
035322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
036112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
037122110230/0HUB COVER£2.06 Add to
038122753000/0PIN D=5.2 x 25.65£2.06 Add to
