HANDLES

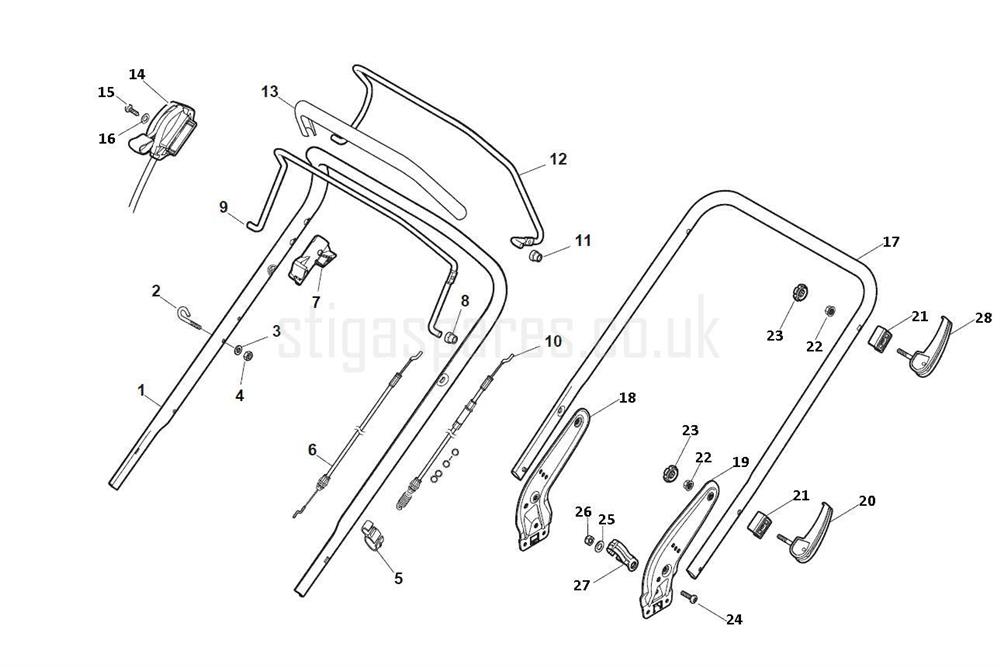

HANDLES assembly details for Stiga COMBI 53 SQ BWB (B&S 675) 299536824/S12 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006838/0UPPER HANDLE [BLACK] NT£32.83 Add to
002122430313/0PULL CORD GUIDE£4.37 Add to
003112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
004112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
005118390020/0CABLE CLIP£1.91 Add to
006181030056/0ENGINE BRAKE CABLE£15.06 Add to
007322545204/0LEVER FULCRUM PLATE£2.02 Add to
008122041966/0CONTROL LEVER BUSH£2.06 Add to
009181003300/1ENGINE BRAKE LEVER£15.54 Add to
010381030092/1CLUTCH DRIVE CABLE£21.26 Add to
011122041966/0CONTROL LEVER BUSH£2.06 Add to
012181003301/0DRIVE CONTROL LEVER£15.41 Add to
013122291050/0HANDLE GRIP [BLACK]£14.58 Add to
014181005501/1THROTTLE CABLE COMPLETE L=1100£23.34 Add to
015112735103/0SELF-TAP SCREW 6.3 x 45£1.91 Add to
016112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
017381006719/0LOWER HANDLE NTD [BLACK]£47.97 Add to
018381005149/0RIGHT HANDLE BRACKET£15.54 Add to
019381005151/0LEFT HANDLE BRACKET£15.54 Add to
020381103359/1LOCKING HANDLE LEVER L=62 [BLACK]£5.07 Add to
021322680016/0HANDLE FIXING WASHER£2.06 Add to
022122131750/0NUT M8£2.06 Add to
023381004310/0HANDLE FIXING ASSEMBLY£2.32 Add to
024112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
025125038002/1BUSH£2.06 Add to
026112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
027322192156/0CABLE HOLDER CLAMP£2.06 Add to
028381103360/0LOCKING HANDLE LEVER L=70 [BLACK]£5.48 Add to
