TRANSMISSION

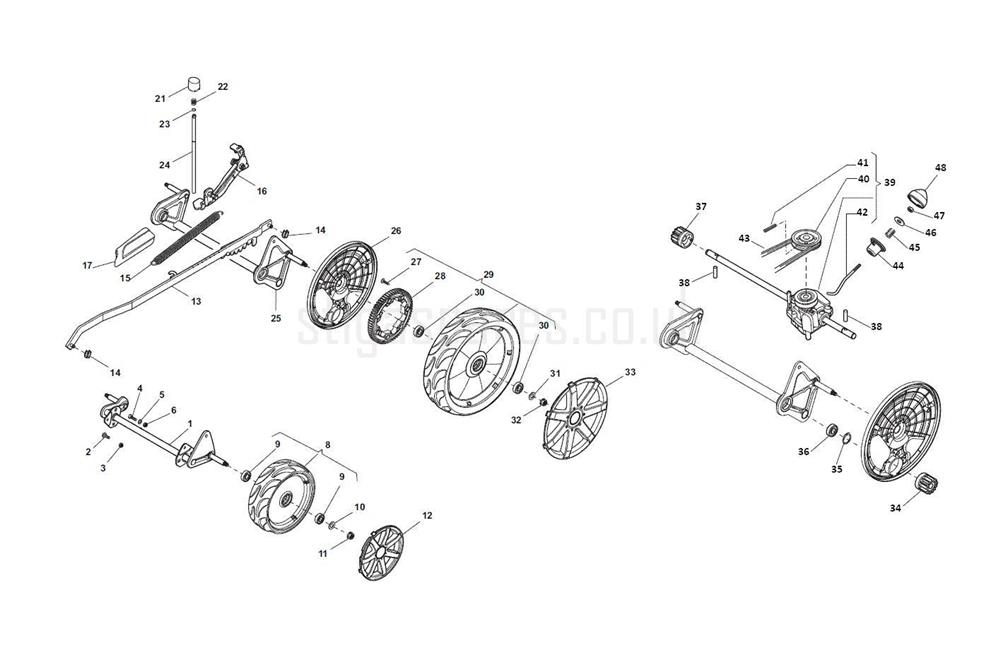

TRANSMISSION assembly details for Stiga EXCEL 50 SQ-B (B&S 675 XVS) 290506021/S11 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002869/1FRONT WHEEL AXLE D=210 DML50£45.35 Add to
002112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
004112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
005112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008381007394/1WHEEL ASSEMBLY D=210 C/W BEARINGS£31.89 Add to
009119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
010112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
012322110597/0DIAMOND HUB CAP D=210 [GREY] (OBSOLETE) (OBSOLETE)N/A
013381002034/0HEIGHT ADJUST TIE BAR£49.34 Add to
014112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
015122450459/1CENTRALIZATION STAFF SPRING DIAMOND£12.68 Add to
016381003337/1HEIGHT ADJUST LEVER (OBSOLETE) (OBSOLETE)N/A
017322570202/0ADJUSTMENT WHEELS POSITION PLATE DM50£5.10 Add to
021322602012/1CENTRALIZATION BUTTON DM RED 3002£2.14 Add to
022122450462/0SPRING£4.52 Add to
023112000930/0CIRCLIP D=6£0.79 Add to
024122033351/1CENTRALIZATION ROD PLUNGER DM 50-55£5.50 Add to
025381002899/0REAR WHEELS AXLE£65.94 Add to
026322600179/0INTERNAL WHEEL COVER (OBSOLETE)N/A
027112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
028322120113/0PLASTIC DRIVE GEAR D=300£12.14 Add to
029381007398/1WHEEL ASSEMBLY D=300£60.46 Add to
030119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
031112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
033322110598/0DIAMOND HUBCAP D=260 GREY RAL 9022£3.41 Add to
034122570132/0LEFT PINION GEAR£12.00 Add to
035112608600/0CIRCLIP D=12£2.08 Add to
036119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
037122570131/0RIGHT PINION GEAR£12.00 Add to
038122753000/0PIN D=5.2 x 25.65£2.06 Add to
039181003106/1GEARBOX [BLACK]£135.85 Add to
040122601908/1PULLEY£9.96 Add to
041112645705/0ROLL PIN D=5 x 32£2.02 Add to
042122033290/0GEAR BOX ADJUSTING ROD STEEL DIAMOND£6.42 Add to
043135064391/0TRAPEZOIDAL BELT X10 X791£12.55 Add to
044122041957/1SPRING GUIDE BUSH£2.06 Add to
045122450063/0SPRING£2.06 Add to
046322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
047112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
048322109550/0ROD CUP£1.79 Add to
