BRAKE BLADE CLUTCH

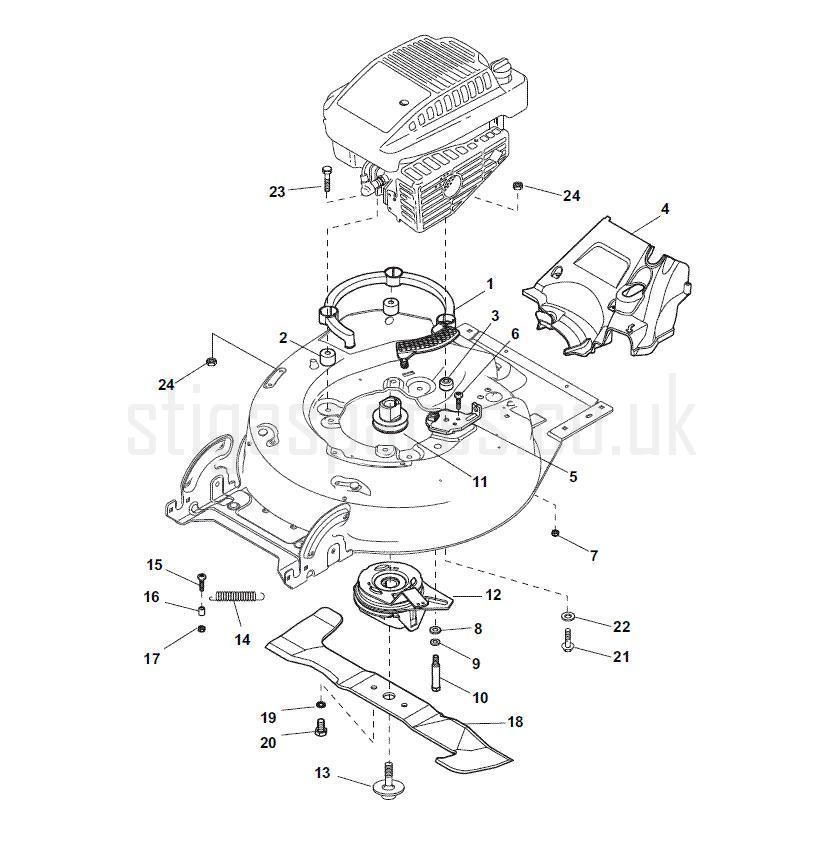

BRAKE BLADE CLUTCH assembly details for Stiga EXCEL 55 SQH BBC (GCV 190) 290558031/S10 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322170962/0CHASSIS PROTECTION£5.10 Add to
002122170835/0ENGINE SPACER£6.63 Add to
003122170836/1ENGINE SPACER£8.44 Add to
004322060235/0BELT PROTECTION GUARD [DM55 BBC] (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
005381545329/0PIVOT PLATE ASS.Y£10.93 Add to
006112727802/0SCREW TCB TORX M6 x 16£2.06 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
009112540060/0SERRATED LOCK WASHER M8£2.06 Add to
010122534127/0FRICTION ANTIROTATION PIN£9.96 Add to
011122601923/0ENGINE HONDA PULLEY NP53£92.95 Add to
012118399051/0BLADE BRAKE CLUTCH£320.51 Add to
013112735460/0CLUTCH BOLT£9.07 Add to
014122446188/0SPRING£10.66 Add to
015112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
016122170846/0SPACER£3.55 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018181004455/0MULCHING BLADE 55 BBC£31.63 Add to
019112540070/0EXTERNAL TOOTHED WASHER M10£2.06 Add to
020112794110/1SCREW TE M10 x 1.5 L=20£2.18 Add to
021112692050/0HEX-HEAD SCREW£1.91 Add to
022112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
023112691700/0SCREW M8 x 55£1.91 Add to
024112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
