HANDLES

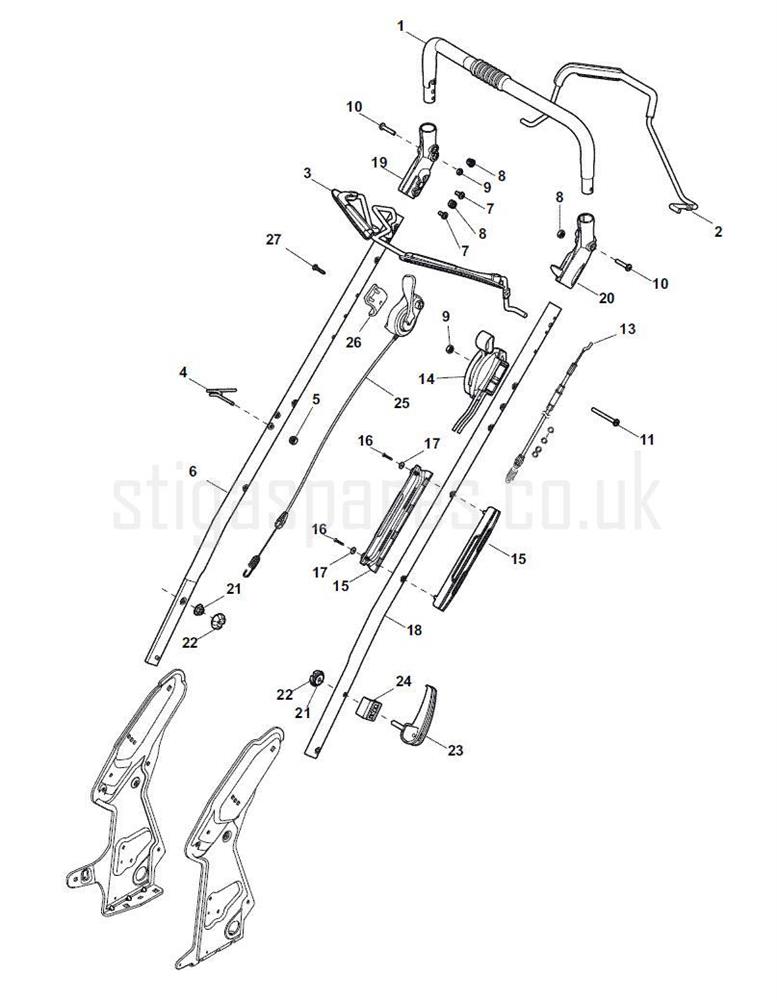

HANDLES assembly details for Stiga EXCEL 55 SQH BBC (GCV 190) 290558031/S10 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006670/2HANDLE TUBE [BLACK]£28.90 Add to
002381003349/0CLUTCH DRIVE LEVER [BLACK]£45.66 Add to
003381003346/0ENGINE BRAKE LEVER [RED]£53.04 Add to
004122430309/0PULL CORD GUIDE£2.87 Add to
005112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
006381006895/0RIGHT STUMP HANDLE BLACK D=25 DIAMOND£35.71 Add to
007112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
008322041967/1BUSH£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
010112728721/0SCREW M6 x 30£1.91 Add to
011112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
013381030067/0CLUTCH DRIVE CABLE£21.90 Add to
014181005510/0THROTTLE CABLE L=1160£26.07 Add to
015322806644/0CABLE PROTECTION BAND£2.87 Add to
016112727812/0SELF-TAPPING SCREW TCB 3.5 x 22£2.06 Add to
017112523000/1WASHER M4 4.3 X 12 X 1£1.98 Add to
018381006897/0LEFT STUMP HANDLE BLACK D=25 DIAMOND£44.17 Add to
019322488301/0RIGHT HANDLE SLEEVE [GREY]£24.95 Add to
020322488303/0LEFT HANDLE SLEEVE [GREY]£24.95 Add to
0211137-0155-01SPACER£4.52 Add to
022381004310/0HANDLE FIXING ASSEMBLY£2.32 Add to
023381103359/1LOCKING HANDLE LEVER L=62 [BLACK]£5.07 Add to
024322680017/0HANDLE BRACKET£2.06 Add to
025381030064/0BBC CLUTCH CABLE£99.65 Add to
026322000020/0ADAPTER DRIVE BBC DM HANDLE D=25£4.52 Add to
027112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
