HANDLES

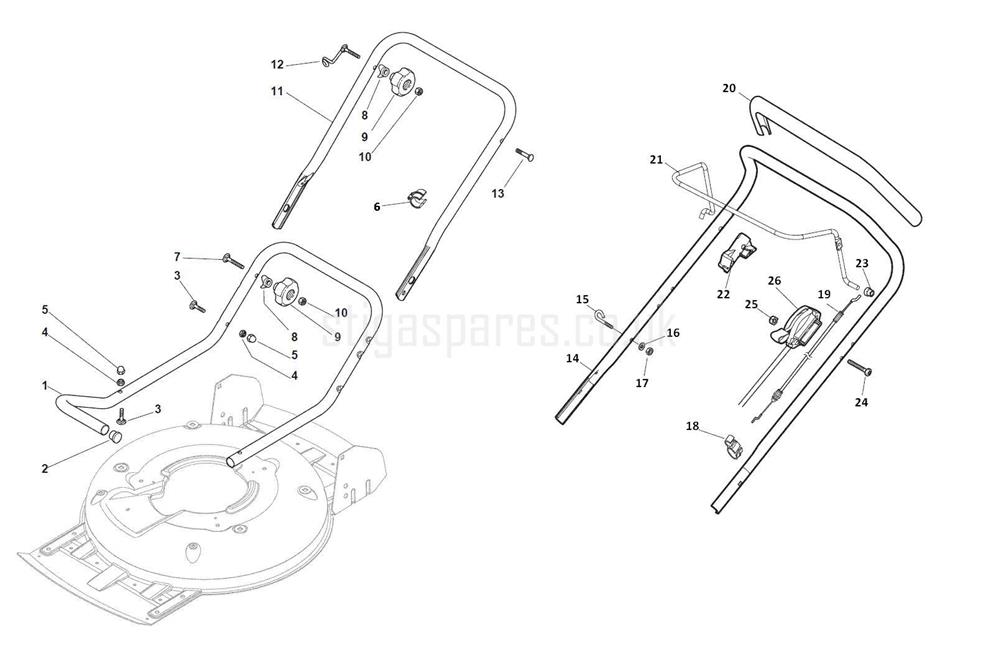

HANDLES assembly details for Stiga MULTICLIP 50 (SA45 140cc OHV) 291501044/ST9 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006667/0LOWER HANDLE MCS50 [BLACK]£42.53 Add to
002118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
003112818900/0SCREW TTDQ M8 x 35£1.97 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
005118203854/0NUT CAP M8 [BLACK]£2.06 Add to
006118390020/0CABLE CLIP£1.91 Add to
007112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
008122680006/1PLASTIC WASHER£1.91 Add to
009122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
010112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
011381006668/0MIDDLE HANDLE MCS50 [BLACK]£32.92 Add to
012181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
013112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
014381006838/0UPPER HANDLE [BLACK] NT£32.83 Add to
015122430313/0PULL CORD GUIDE£4.37 Add to
016112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018118390020/0CABLE CLIP£1.91 Add to
019181030056/0ENGINE BRAKE CABLE£15.06 Add to
020122291050/0HANDLE GRIP [BLACK]£14.58 Add to
021181003300/1ENGINE BRAKE LEVER£15.54 Add to
022322545204/0LEVER FULCRUM PLATE£2.02 Add to
023122041966/0CONTROL LEVER BUSH£2.06 Add to
024112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
025112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
026181005517/0THROTTLE CABLE L=1020£21.04 Add to
