HANDLES

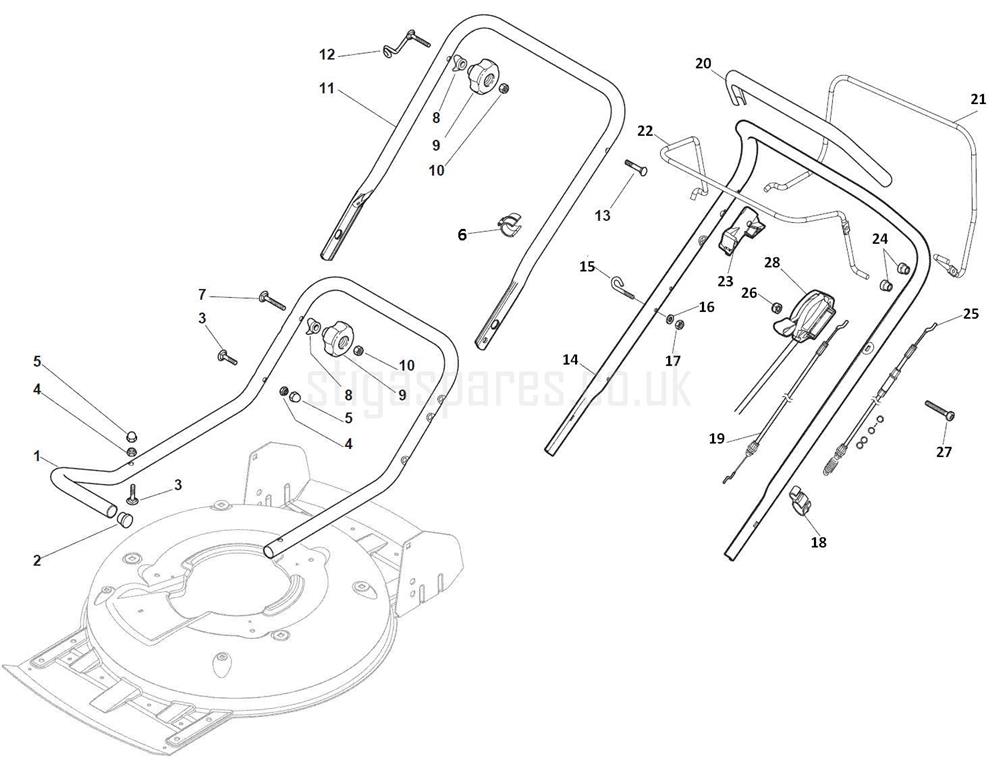

HANDLES assembly details for Stiga MULTICLIP 50S RENTAL (SA55) 291502141/ST9 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006367/2STIGA PRO UPPER HANDLE ASS.Y MC BLACK£116.11 Add to
002112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
003181000618/0ENGINE BRAKE CABLE L=1227£13.49 Add to
004322551639/0CABLE HOLDER BLOCK D=25£14.93 Add to
005112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
006381003318/1ENGINE BRAKE LEVER£34.35 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
009122671660/1WASHER£3.69 Add to
010112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
011112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
012112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
013122450446/0SPRING£2.06 Add to
014122170840/0SPACER£6.32 Add to
015381003313/0CLUTCH DRIVE LEVER£16.22 Add to
016112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
017322399812/0BALL KNOB£3.41 Add to
018112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
019381030095/0CLUTCH DRIVE CABLE BI.CI.DI£22.37 Add to
020112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
021112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
022122170843/0SPACER - NLA£1.91 Add to
023322551653/0SUPPORT LEVER PLATE£4.52 Add to
025122170842/0SPACER£2.59 Add to
026112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
028122430314/0PULL CORD GUIDE£6.27 Add to
029381004405/0DASHBOARD£21.26 Add to
030112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031112727792/0CROSS-HEAD SCREW M6 x 35£2.06 Add to
032112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
033322500050/0DECAL PLATE£2.06 Add to
034122524342/0FIXING PIN£2.06 Add to
035112604897/0STARLOCK WASHER D=5£2.06 Add to
036112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
037112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
045381006377/0R/H LOWER HANDLE [BLACK] MCS50£37.08 Add to
046118566114/0HANDLE CAP [BLACK]£2.06 Add to
047112819100/0CARRIAGE BOLT M8 x 40£2.06 Add to
048112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
049118203854/0NUT CAP M8 [BLACK]£2.06 Add to
050381006379/0L/H LOWER HANDLE [BLACK] MCS50£38.44 Add to
051112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
052381006365/1LOWER HANDLE PART MC/MCS BLACK£70.31 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
054112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
055112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
056322399813/0HANDLE KNOB [BLACK]£20.89 Add to
057112291000/0HEXAGON NUT M5£2.06 Add to
059322171006/0SPACER D=28£2.06 Add to
060112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
061112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
062381007279/1THROTTLE LEVER£2.06 Add to
063112815030/0SCREW TTDQ M5 x 55£3.64 Add to
064114356702/0THROTTLE DECAL£2.06 Add to
065481007080/0THROTTLE CABLE£24.95 Add to
