TRANSMISSION

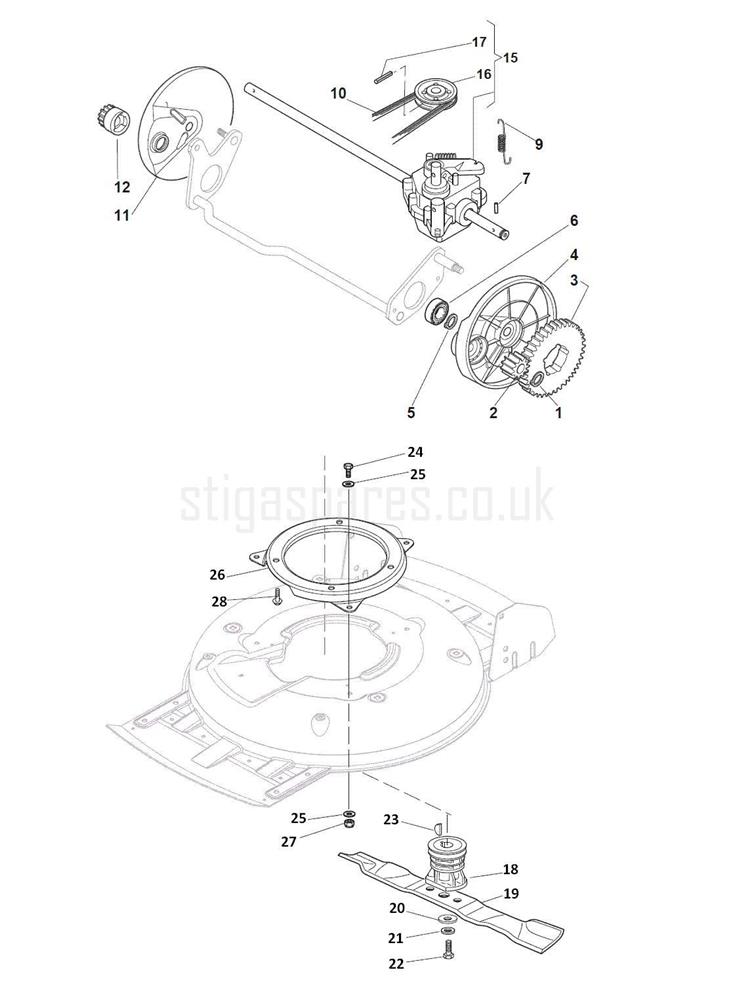

TRANSMISSION assembly details for Stiga MULTICLIP 50S RENTAL (SA55) 291502141/ST9 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112608600/0CIRCLIP D=12£2.08 Add to
002122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
003122120105/1DRIVE GEAR WHEEL£10.82 Add to
004322600267/0INNER WHEEL COVER£6.09 Add to
005112608600/0CIRCLIP D=12£2.08 Add to
006119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
007122753000/0PIN D=5.2 x 25.65£2.06 Add to
009122450439/0TENSION SPRING£3.69 Add to
010135064100/0TRAPEZOIDAL BELT Z30£10.50 Add to
011322600267/0INNER WHEEL COVER£6.09 Add to
012122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
015181003109/1AGEARBOX [GREY] RATIO 6:1£162.54 Add to
016122601909/0PULLEY£6.01 Add to
017112645705/0ROLL PIN D=5 x 32£2.02 Add to
018122465611/0BLADE BOSS D=22£16.16 Add to
019181004146/0MULTICLIP BLADE 48/50cm£15.94 Add to
020322672110/1FRICTION WASHER 18.3 x 60 x 1.5£1.91 Add to
021322672105/0BLADE WASHER 60 x 18 x 2£1.91 Add to
022112508120/0SPRING WASHER 18.4 x 50 x 2£3.72 Add to
023122041940/0METAL BUSH 25 x 19 x 15£5.87 Add to
024112736850/0HEX-HEAD SCREW 3/8" x 2½"£2.32 Add to
025112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
026122524329/0HEXAGON BOLT M8£12.68 Add to
027322672201/0RUBBER GROMMET£6.27 Add to
028381207221/1ENGINE MOUNTING PLATE AVS [YELLOW] MCS50£32.99 Add to
029322250012/0AVS RUBBER DAMPER£9.00 Add to
030122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
031112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
033112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
034122450444/0SPRING£2.87 Add to
035112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
