CHASSIS

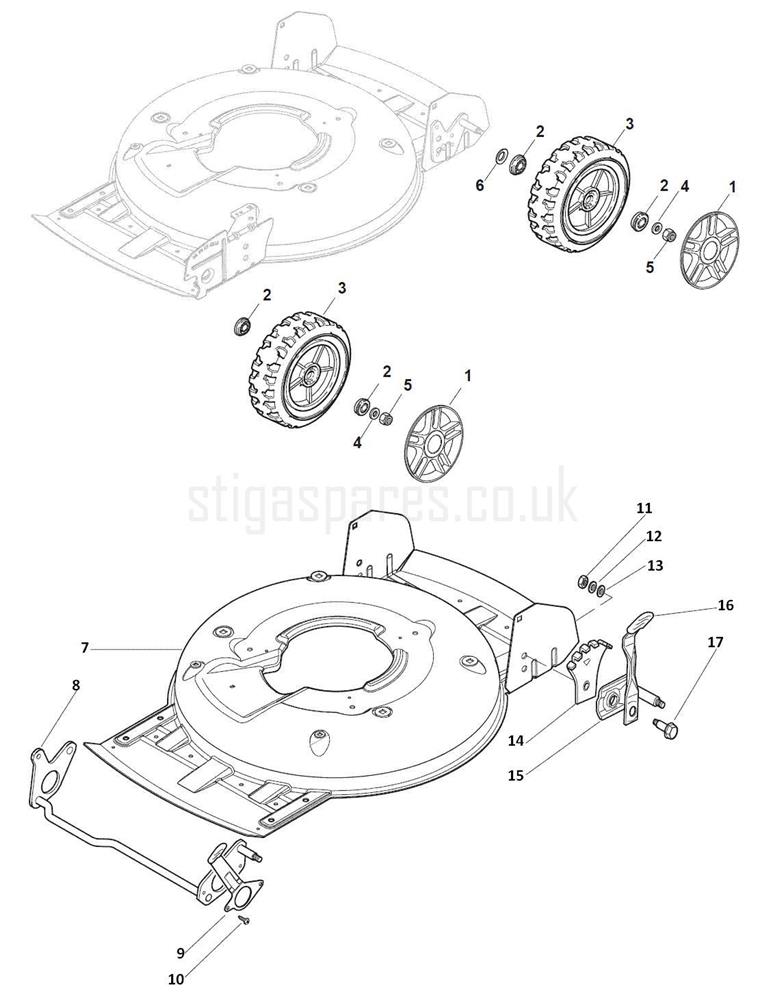

CHASSIS assembly details for Stiga MULTICLIP 50S (SA45 140cc OHV) 291502044/ST9 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322110492/0HUB CAP D=210 [GREY]£2.61 Add to
002122122206/0BEARING£2.32 Add to
003381007490/0WHEEL ASSEMBLY D=210 [ECO]£26.18 Add to
004112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006112530150/0SPRING WASHER M12£1.79 Add to
007381004734/0DECK MULTICLIP 50 [GREY]£216.11 Add to
008381302863/0FRONT WHEELS AXLE£47.97 Add to
009381003276/0HEIGHT ADJUST LEVER£19.36 Add to
010112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
011112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
012112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
013112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
014322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
015381005175/0WHEEL STUB AXLE£8.84 Add to
016481003286/0HEIGHT ADJUST LEVER£5.19 Add to
017122519811/0WHEEL BOLT£2.06 Add to
