CHASSIS

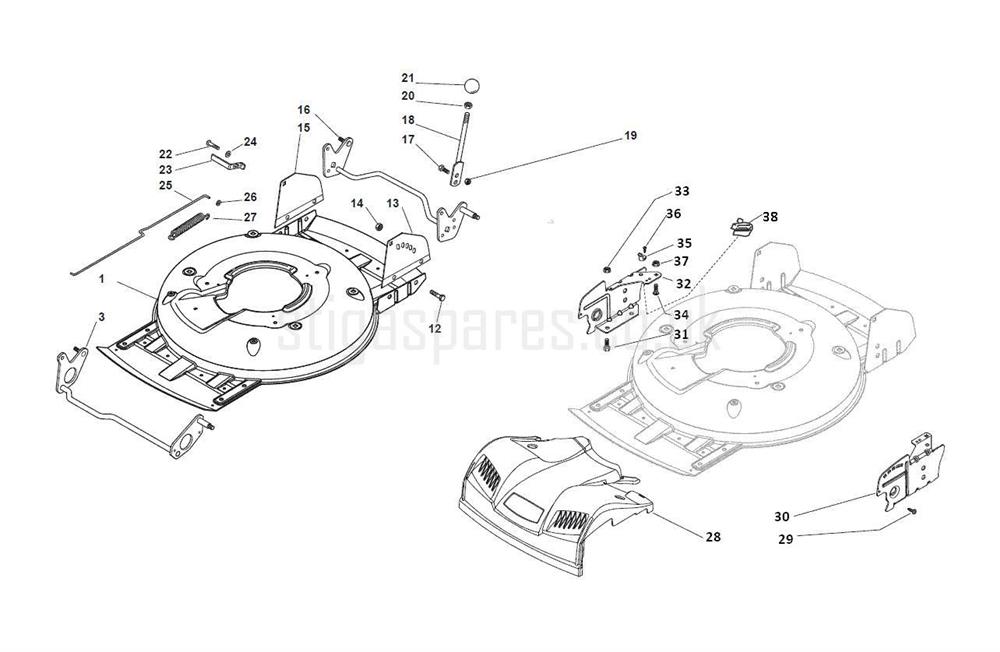

CHASSIS assembly details for Stiga MULTICLIP PRO 50 4S INOX SVAN 291563038/S11 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322064691/0CHASSIS£283.79 Add to
003381302863/0FRONT WHEELS AXLE£47.97 Add to
012112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
013322545169/0REAR LEFT PLATE HEIGHT ADJUSTMENT MCS 50£8.42 Add to
014112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
015322545167/0REAR RX PLATEHEIGHT ADJUST MCS 50£8.42 Add to
016381302861/1REAR WHEELS AXLE£45.26 Add to
017112789000/0SCREW TE M5 x 12£2.06 Add to
018381003323/0HEIGHT ADJUST LEVER£16.36 Add to
019112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021322399812/0BALL KNOB£3.41 Add to
022112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
023322551529/0WHEELS CLEANING PLATE£4.10 Add to
024112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
025122033329/0HEIGHT ADJUST ROD£9.62 Add to
026112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
027122446184/0SPRING£5.21 Add to
028322226097/1PLASTIC FRONT COVER [YELLOW]£13.20 Add to
029112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
030322778421/0LEFT FRONT BRACKET£14.45 Add to
031112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
032322778419/0RIGHT FRONT BRACKET£14.45 Add to
033112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
034112815200/0SCREW TTDQ M6X16£2.06 Add to
035322020400/0PLASTIC LUG SCREW£2.06 Add to
036112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.06 Add to
037112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
038133320506/0CABLE CLIP£1.79 Add to
