HANDLES

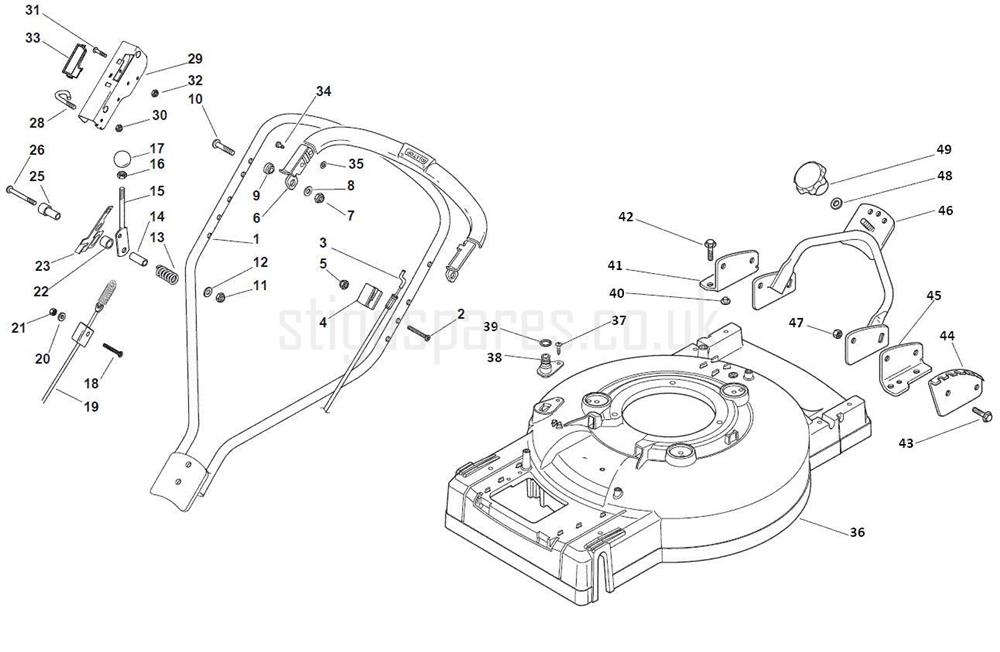

HANDLES assembly details for Stiga MULTICLIP PRO 53S SVAN (H160 293532038/ST9 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006363/2STIGA UPPER HANDLE ASS.Y MC/MCS YELLOWN/A POA
002112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
003181000732/0ENGINE BRAKE CABLE L=975£13.23 Add to
004322551685/0CABLE HOLDER BLOCK£7.52 Add to
005112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
006381003318/1ENGINE BRAKE LEVER£34.35 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
009122671660/1WASHER£3.69 Add to
010112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
011112292100/0HEXAGON NUT M6£1.47 Add to
012112530060/0SPRING WASHER M6£1.79 Add to
013122450446/0SPRING£2.06 Add to
014122170840/0SPACER£6.32 Add to
015381003313/0CLUTCH DRIVE LEVER£16.22 Add to
016112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
017322399812/0BALL KNOB£3.41 Add to
018112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
019381000745/1CLUTCH DRIVE CABLE G.T.£23.08 Add to
020112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
021112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
022122170842/0SPACER£2.59 Add to
023322551653/0SUPPORT LEVER PLATE£4.52 Add to
025122170843/0SPACER - NLA£1.91 Add to
026112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
028122430314/0PULL CORD GUIDE£6.27 Add to
029381004405/0DASHBOARD£21.26 Add to
030112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031112727792/0CROSS-HEAD SCREW M6 x 35£2.06 Add to
032112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
033322500050/0DECAL PLATE£2.06 Add to
034122524342/0FIXING PIN£2.06 Add to
035112604897/0STARLOCK WASHER D=5£2.06 Add to
036381004736/0ALUMINIUM DECK MC53 [GREY]£417.57 Add to
037112728519/0SELF-TAP SCREW TCB 5.5 x 16£1.79 Add to
038122034000/0WASHING CONNECTION£2.06 Add to
039119035000/0O RING 10.77 x 2.62£5.46 Add to
040322820054/0PLASTIC CAP [WHITE]£3.69 Add to
041322778417/0RIGHT HANDLE BRACKET£10.09 Add to
042112735595/0SCREW£4.01 Add to
043112800815/0SCREW TE FL M8 x 16£2.06 Add to
044322735569/0HEIGHT ADJUST QUADRANT£16.36 Add to
045322778415/0LEFT HANDLE BRACKET£17.86 Add to
046381006369/2MIDDLE HANDLE MC PRO [GREY]£107.93 Add to
047112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
048112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
049322399813/0HANDLE KNOB [BLACK]£20.89 Add to
