TRANSMISSION

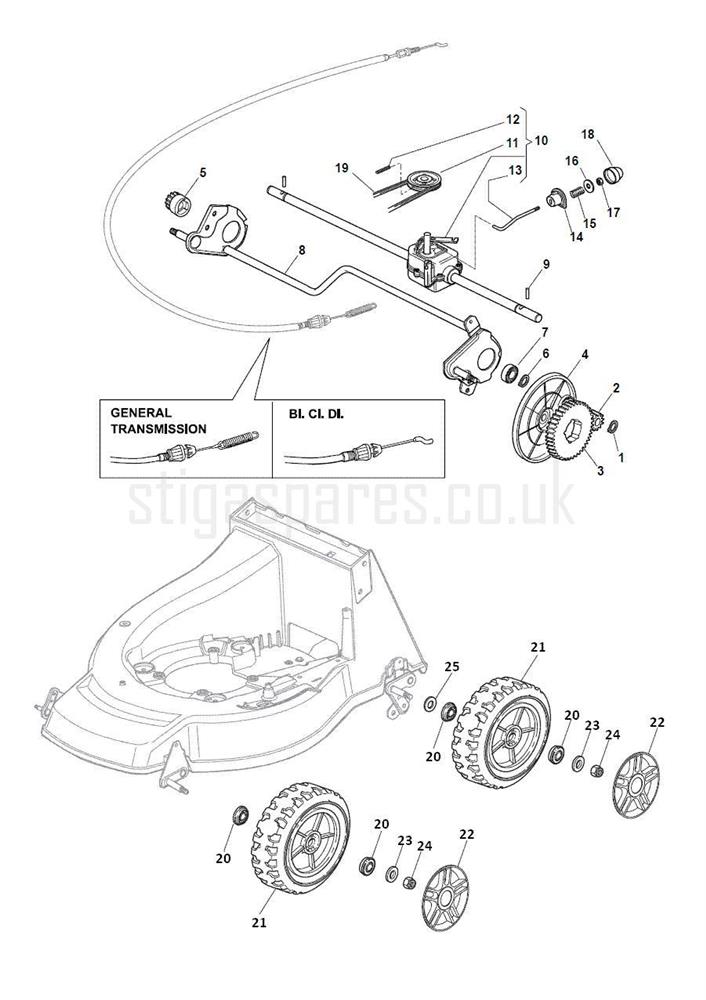

TRANSMISSION assembly details for Stiga TURBO POWER 53 SB (B&S 675 EX) 292166021/S12 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112608600/0	CIRCLIP D=12	£2.08	Add to
002	122570120/1	LEFT PINION Z10 GEAR(METAL)was Plastic	£8.75	Add to
003	122120105/1	DRIVE GEAR WHEEL	£10.82	Add to
004	322600268/0	INNER WHEEL COVER RH/LH	£4.52	Add to
005	122570110/1	RIGHT PINION Z10 GEAR(METAL)was Plastic	£8.52	Add to
006	112608600/0	CIRCLIP D=12	£2.08	Add to
007	119216035/0	BEARING 6001 2RS (12 x 28 x 8)	£3.83	Add to
008	381302867/0	REAR WHEELS AXLE	£50.70	Add to
009	122753000/0	PIN D=5.2 x 25.65	£2.06	Add to
010	181003079/1	GEARBOX [BLACK]	£98.08	Add to
010	181003082/1	GEARBOX [GREY]	£129.74	Add to
011	122601909/0	PULLEY	£6.01	Add to
012	112645705/0	ROLL PIN D=5 x 32	£2.02	Add to
013	122033281/0	GEAR ADJUSTMENT ROD	£4.37	Add to
014	122041957/1	SPRING GUIDE BUSH	£2.06	Add to
015	122450063/0	SPRING	£2.06	Add to
016	322680009/0	FLAT WASHER 6.5 x 32 x 4 WZ	£1.91	Add to
017	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
018	122110230/0	HUB COVER	£2.06	Add to
019	135064195/0	TRAPEZOIDAL BELT Z33	£11.59	Add to
020	122122206/0	BEARING	£2.32	Add to
021	381007390/2	WHEEL ASSEMBLY D=210 [ECO]	£17.72	Add to
022	322110492/0	HUB CAP D=210 [GREY]	£2.61	Add to
023	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
024	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
025	112530150/0	SPRING WASHER M12	£1.79	Add to
