CHASSIS

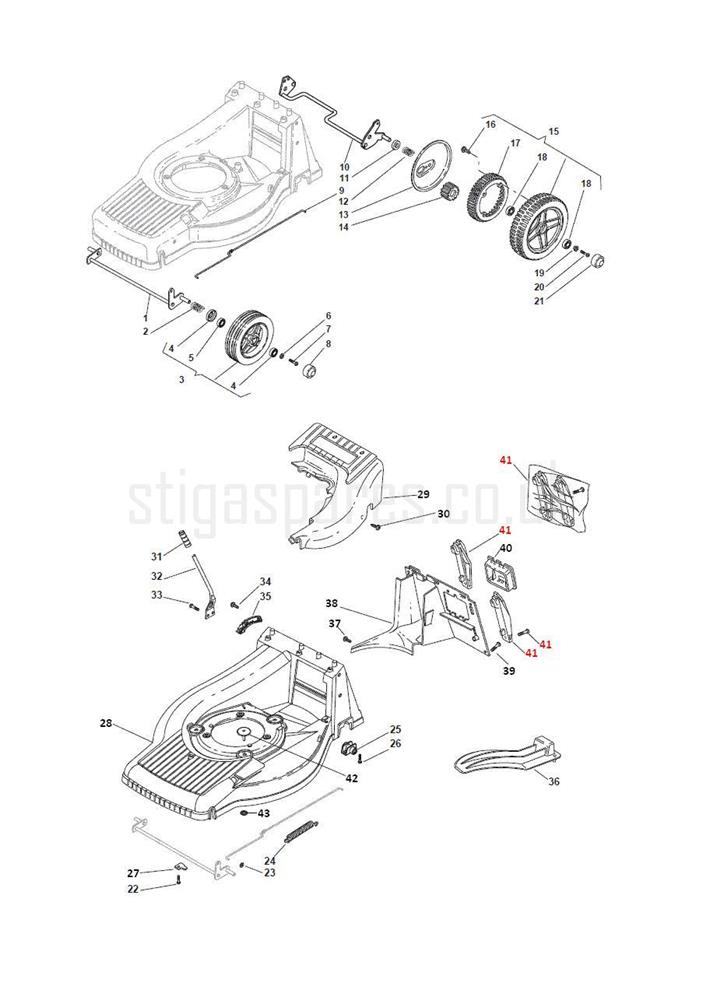

CHASSIS assembly details for Stiga TURBO PRO 55 4S (Honda GCV190) 292553038/S10 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002825/0FRONT WHEEL AXLE (OBSOLETE) (OBSOLETE)N/A
002122430210/0SPRING£2.06 Add to
003381007364/0ALUMINIUM WHEEL ASSEMBLY 190mm£59.05 Add to
004322160522/0DUST COVER£3.28 Add to
005119216039/0BEARING 6001-2Z C3£3.69 Add to
006112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
007112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
008322110379/0HUB CAP D=175/190 [BLACK]£7.63 Add to
009122033324/0WHEELS CONTROL ROD TU55 (L=642)£11.53 Add to
010381002823/0REAR WHEELS AXLE (OBSOLETE)N/A
011122170810/0REAR WHEEL SPACER£4.10 Add to
012122430215/0SPRING£3.69 Add to
013322600127/0WHEEL PROTECTION 205/215 ZNW TU TR£10.95 Add to
014122570126/0PINION GEAR D=40£15.41 Add to
015381007368/0ALUMINIUM WHEEL ASSEMBLY 215mm£102.48 Add to
016112728210/0SCREW TORX M4 x 10£1.79 Add to
017322120108/0PLASTIC DRIVE GEAR£12.00 Add to
018119216038/0BEARING 6201-2RS C3£6.27 Add to
019122671655/0FIXING WASHER REAR WHEELS TU£6.71 Add to
020112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
021322110380/0HUB CAP [BLACK]£3.15 Add to
022112735664/0SCREW M6 x 16£2.02 Add to
023112604898/0STARLOCK WASHER D=7£2.02 Add to
024122446181/0SPRING£7.10 Add to
025322785153/0GEARBOX SUPPORT BRACKET£16.10 Add to
026112735664/0SCREW M6 x 16£2.02 Add to
027322545160/0FRONT AXLE PLATE (OBSOLETE) (OBSOLETE)N/A
028381002660/0ALUMINIUM DECK 55cm [YELLOW]£524.92 Add to
029322060154/0DECK COVER [YELLOW]£19.77 Add to
030112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
031322399808/0HEIGHT ADJUST KNOB£2.87 Add to
0321111-2816-01HEIGHT ADJUST LEVER (OBSOLETE)N/A
033112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
034112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
035322735563/0HEIGHT ADJUST QUADRANT£15.41 Add to
036322140232/0MULCHING PLUG [TURBO 55] (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
037112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
038322108277/0PLASTIC REAR BAFFLE£46.14 Add to
039112735664/0SCREW M6 x 16£2.02 Add to
040322109531/0BATTERY COVER£2.87 Add to
041381008658/1ACCESSORY BAG-GRASSCATCHER£17.86 Add to
042322820057/0DECK CLOSING CAP [BLACK]£2.06 Add to
043112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
