HANDLES

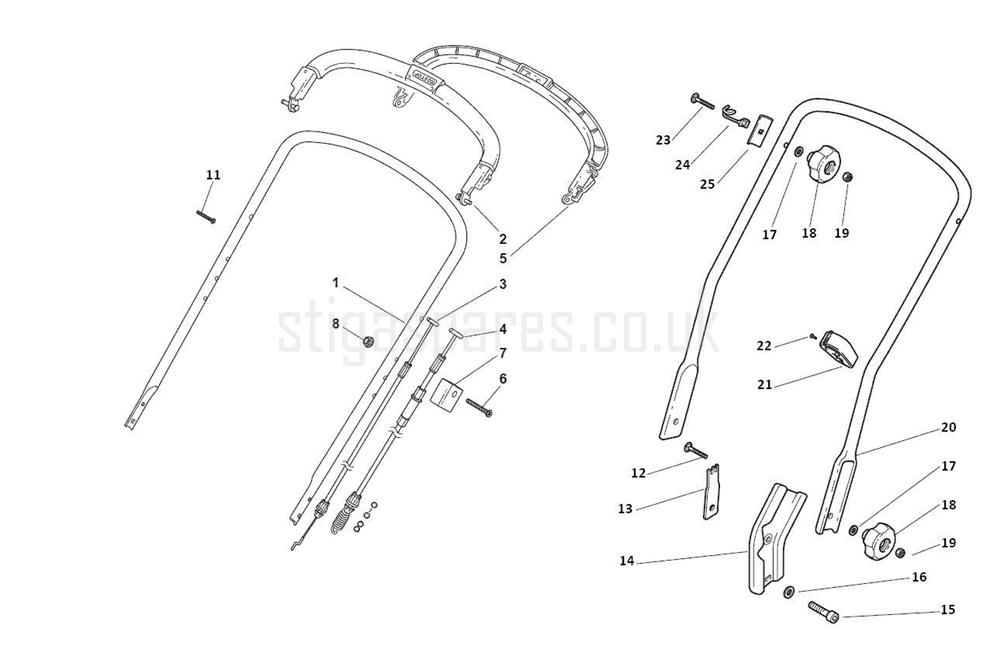

HANDLES assembly details for Stiga TURBO PRO 55 4S (Honda GCV190) 292553038/S10 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006632/1UPPER HANDLE [YELLOW] TURBO 50-55£28.90 Add to
002381003330/0BRAKE LEVER ASSEMBLY-METAL ENDS£68.42 Add to
003181030061/0ENGINE BRAKE CABLE L=1282£13.77 Add to
004381000697/0CLUTCH DRIVE CABLE£20.25 Add to
005381003297/1DRIVE CONTROL LEVER£22.49 Add to
006112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
007322551685/0CABLE HOLDER BLOCK£7.52 Add to
008112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
012112820655/0SCREW TTDQ 1/4" x 2 1/4"£1.79 Add to
013322551635/0ATTACHMENT PLATE£4.23 Add to
014322778405/0LOWER HANDLE SUPPORT CLAMP£24.95 Add to
015112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
016112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
017112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
018322399810/0HANDWHEEL w/o NUT [BLACK]£8.73 Add to
019112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
020381006631/0LOWER HANDLE [YELLOW]£45.57 Add to
021322192001/0CABLE CLAMP£2.06 Add to
022112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
023112820655/0SCREW TTDQ 1/4" x 2 1/4"£1.79 Add to
024122430311/0PULL CORD GUIDE£6.87 Add to
025322545137/0HANDLE CLAMP PLATE£2.06 Add to
