HANDLES

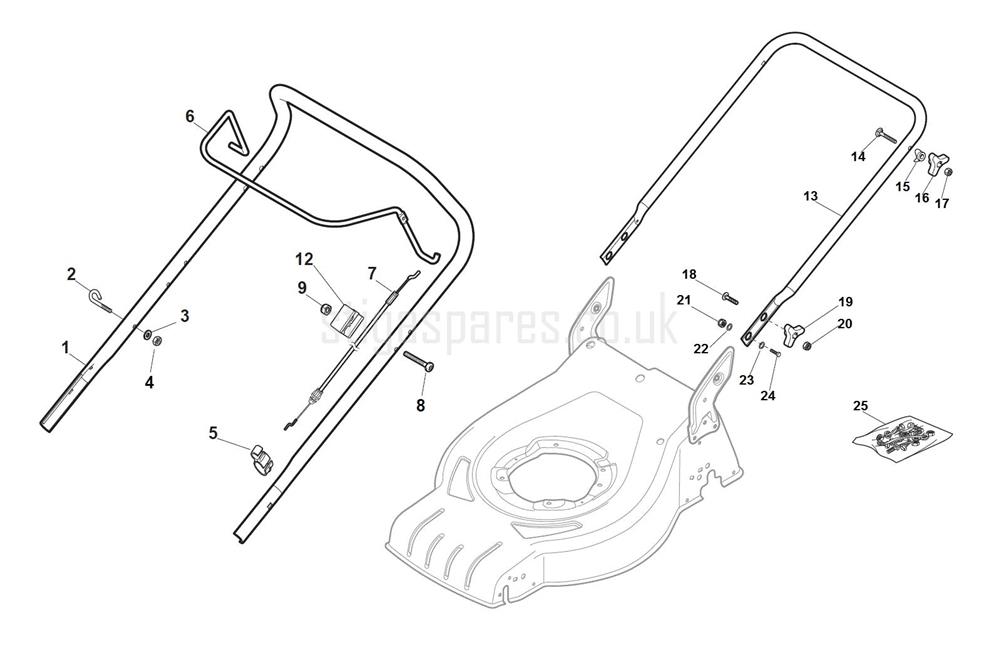

HANDLES assembly details for Stiga COMBI 48 B (B&S 550 Series) 295485028 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006753/0ERGO UPPER HANDLE CR PETROL YELLOW STIGA£16.28 Add to
002122430313/0PULL CORD GUIDE£4.37 Add to
003112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
004112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
005118390020/0CABLE CLIP£1.91 Add to
006181003363/1ENGINE BRAKE LEVER£15.41 Add to
007181030056/0ENGINE BRAKE CABLE£15.06 Add to
008112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
012322551685/0CABLE HOLDER BLOCK£7.52 Add to
013381007537/0LOWER HANDLE [YELLOW]£16.55 Add to
014112819110/0CARRIAGE BOLT M8 x 50£2.02 Add to
015122680006/1PLASTIC WASHER£1.91 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
017112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
018112818900/0SCREW TTDQ M8 x 35£1.97 Add to
019122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
022112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
023112369500/0SPRING WASHER D=8£1.79 Add to
024112760605/0SCREW TBEI M8 X 20MM£2.53 Add to
025381008691/0SCREWS ASSEMBLY KIT£9.00 Add to
