GRASSCATCHER

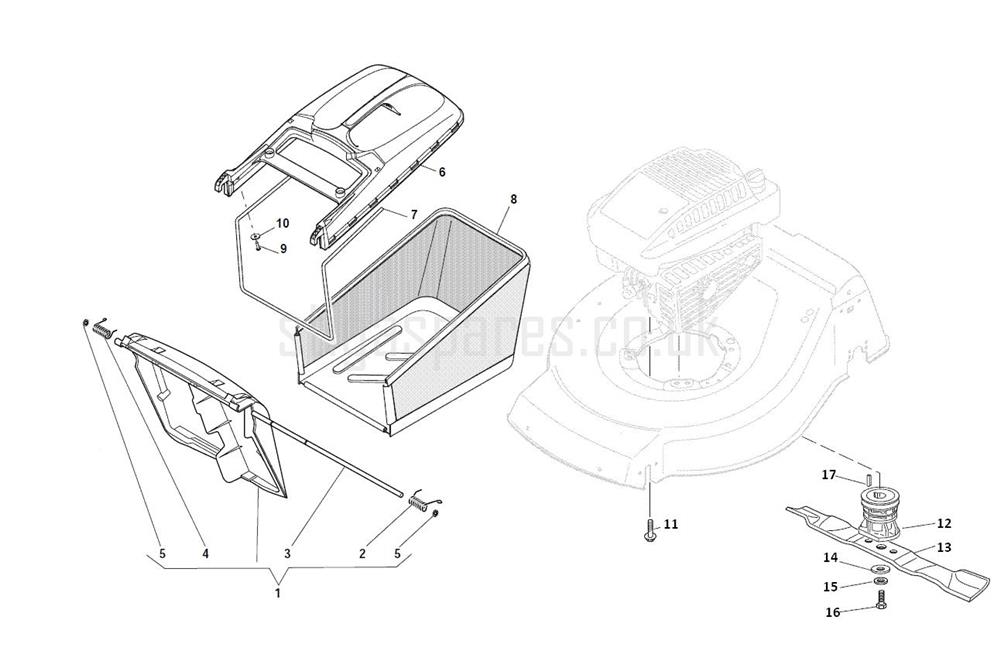

GRASSCATCHER assembly details for Stiga COMBI 53 SQ B (B&S 675 EX) 299536828 2014 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381008082/2	DEFLECTOR ASSEMBLY [YELLOW]	£25.67	Add to
002	122450466/0	L/H DEFLECTOR SPRING	£2.18	Add to
003	122517882/0	DEFLECTOR ROD	£7.50	Add to
004	122450465/0	R/H DEFLECTOR SPRING	£2.18	Add to
005	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
006	381486013/0	GRASSCATCHER TOP-FULL INDICATOR [BLACK]	£22.76	Add to
006	381486030/0	GRASSCATCHER TOP-FULL INDICATOR [GREY]	£23.04	Add to
007	122608525/2	GRASSCATCHER FRAME	£20.01	Add to
008	181002211/0LC	GRASSBAG [BLACK]	£51.11	Add to
009	112728680/0	FLANGED SCREW D=5 x 25	£2.06	Add to
010	112523050/0	WASHER M6 6.6 x 24 x 2	£2.06	Add to
011	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
012	122465607/4	BLADE BOSS D=22.2mm	£10.09	Add to
013	181004381/1	BLADE 51cm	£17.85	Add to
014	122160400/0	SPRING WASHER 50 x 2 x 10.2	£2.18	Add to
015	112523080/0	WASHER M10 11 x 30 x 2.5	£2.06	Add to
016	112735698/0	HEX-HEAD SCREW 3/8" x 2"	£2.02	Add to
017	112139100/0	WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40	£2.06	Add to
