GUARDS

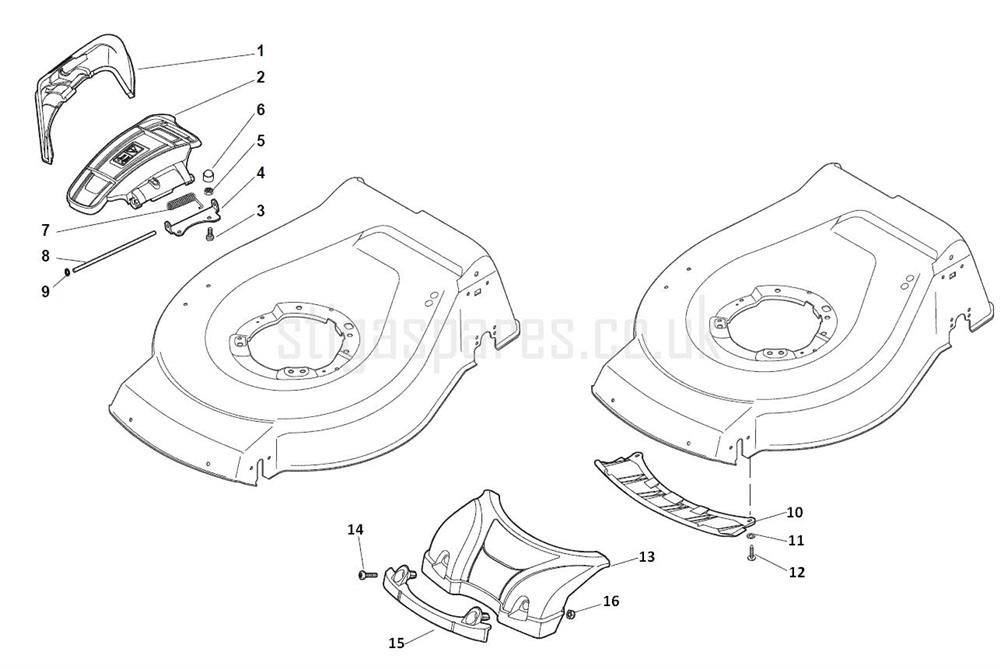

GUARDS assembly details for Stiga COMBI 53 SQ B (B&S 675 EX) 299536828 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322108295/1SIDE EJECTION GUARD [BLACK]£10.50 Add to
002381008159/0SIDE STONE GUARD ASS.Y NT BLACK£27.41 Add to
003112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
004322806639/0FULCRUM BRACKET£3.00 Add to
005112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
006118203853/0BLACK NUT CAP M6£3.00 Add to
007122450456/1DEFLECTOR SPRING£3.69 Add to
008122517869/0DEFLECTOR ROD£4.37 Add to
009112604896/0STARLOCK WASHER D=6£2.06 Add to
010322500103/0UNDER DECK COVER 51cm£5.32 Add to
011112523000/1WASHER M4 4.3 X 12 X 1£1.98 Add to
012112728124/0SELF-TAP SCREW TCB TORX 4.2 X 16£1.74 Add to
013322226196/0FRONT COVER [GREY] NT53£14.86 Add to
014112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
015322393639/0FRONT HANDLE [GREY]£7.10 Add to
016112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
