BLADE

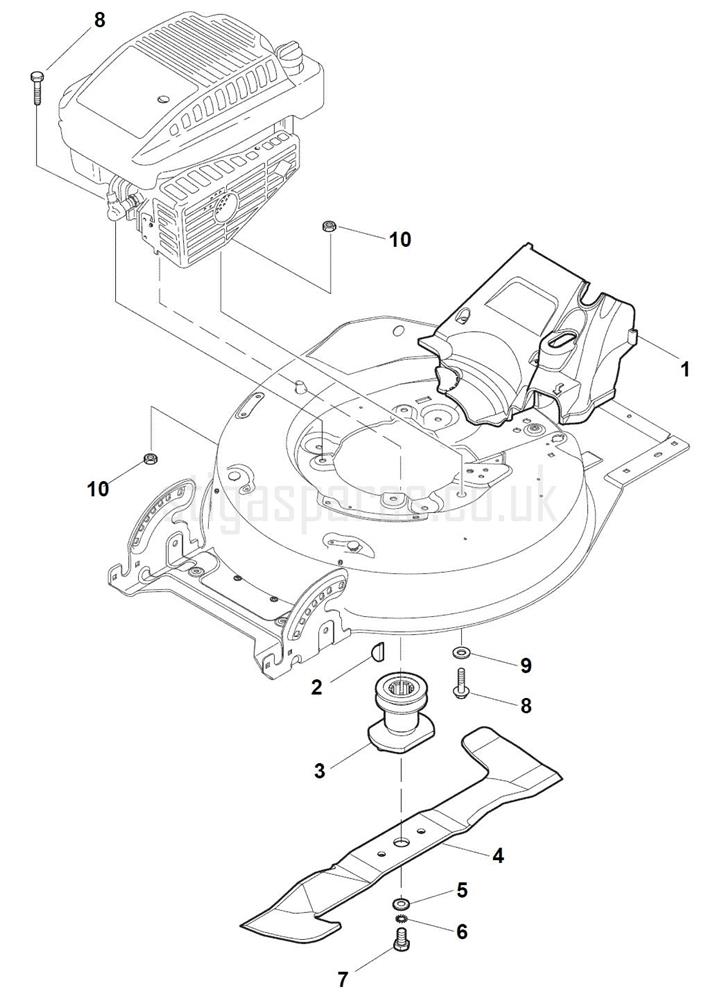

BLADE assembly details for Stiga EXCEL 50 S4Q B (B&S 750 EX) 290507028 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322060230/0BELT PROTECTION CARTER DECK DM 50 BLACK£6.71 Add to
002112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
003122465607/4BLADE BOSS D=22.2mm£10.09 Add to
004181004450/0MULCHING BLADE DM50 L=477£28.68 Add to
005122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
006112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
007112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
008119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
009112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
010112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
