CHASSIS

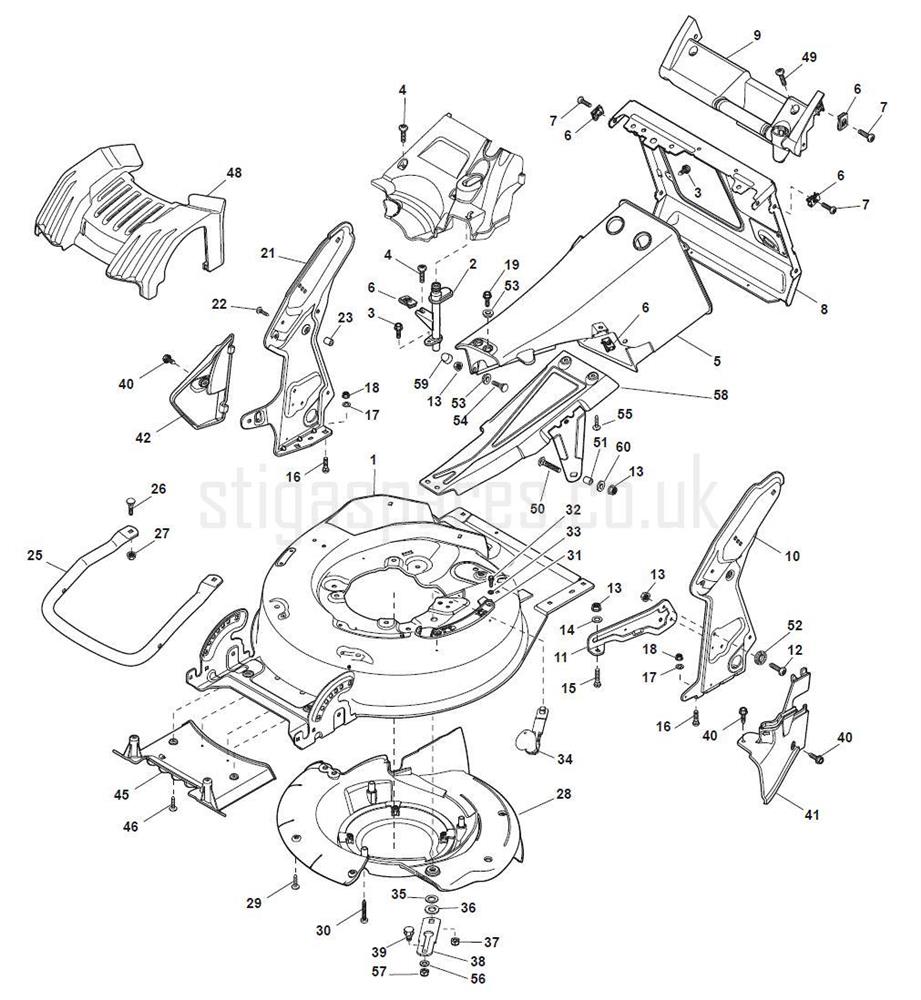

CHASSIS assembly details for Stiga EXCEL 55 SQB BBC (B&S 675 EX) 290558028 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004740/0DECK DML55 UL WRINKLED GREY STIGA+CTF£153.60 Add to
002322034001/1WASHING CONNECTION DM RED 3002£4.52 Add to
003125943004/0FLANGED SCREW TE 4.8£1.91 Add to
004112727802/0SCREW TCB TORX M6 x 16£2.06 Add to
005322108294/1DISCHARGE CHUTE [YELLOW]£23.45 Add to
006112437507/0RAPID FIXING PLATE M6£2.06 Add to
007112727802/0SCREW TCB TORX M6 x 16£2.06 Add to
008381545321/0PLATE ASS.Y£18.53 Add to
009322785282/0REAR SUPPORT£20.09 Add to
010381545333/0LEFT SIDE PLATE ASS.Y HANDLE SUPPORT DM£24.56 Add to
011322545191/0LEFT TIE ROD PLATE£5.03 Add to
012112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
015112815200/0SCREW TTDQ M6X16£2.06 Add to
0169897-0820-16SCREW M8 x 20£2.32 Add to
017112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
019112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
021381545331/0RIGHT SIDE PLATE ASS.Y HANDLE SUPPORT DM£24.56 Add to
022112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
023122534128/0GRASSCATCHER PIN WBH DM£2.18 Add to
025381393702/0FRONT HANDLE ASS.Y (BUMPER) DM55£26.04 Add to
026112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
027112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
028381102203/0MULCHING PLATE DM55 (OBSOLETE) (OBSOLETE)N/A
029125943004/0FLANGED SCREW TE 4.8£1.91 Add to
030112735115/0SCREW£3.64 Add to
031322500052/2SLIPPER FOR MULCHING POSITION DM (TAMP.)£4.73 Add to
032112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
033112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
034381003338/0MULCH ENGAGE LEVER£13.08 Add to
035321660100/0THRUST WASHER 13 X 22 X 0.5£2.32 Add to
036112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
037112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
038322320009/0ZINCHED MULCHING CONTROL LEVER DIAMO£2.87 Add to
039122042022/0BUSH£4.52 Add to
040125943004/0FLANGED SCREW TE 4.8£1.91 Add to
041322109830/0REAR L/H SIDE COVER DM55 [BLACK]£4.52 Add to
042322109825/0REAR RIGHT SIDE COVER DECK DM 50 BLA£4.52 Add to
045322500101/0PLASTIC FRONT COMB DIAMOND 55£13.00 Add to
046112728703/0SELF-TAPPING SCREW£3.64 Add to
048322226200/0PLASTIC FRONT SA DM55 GREY NCS S8000-N£12.37 Add to
049112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
050112815270/0SCREW M6 x 25£2.06 Add to
051122042023/0REAR CONVEYOR FIXING BUSHING DIAMOND£3.64 Add to
052112540040/0EXTERNAL TOOTHED WASHER M6£1.79 Add to
053325160039/0SPACER£2.06 Add to
054112794986/0SCREW TTDQ 6X16 4.6 (OBSOLETE) (OBSOLETE)N/A
055112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
056112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
057112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
058381608501/0INTERNAL STIFFENER DM50£44.59 Add to
059118203853/0BLACK NUT CAP M6£3.00 Add to
