CHASSIS

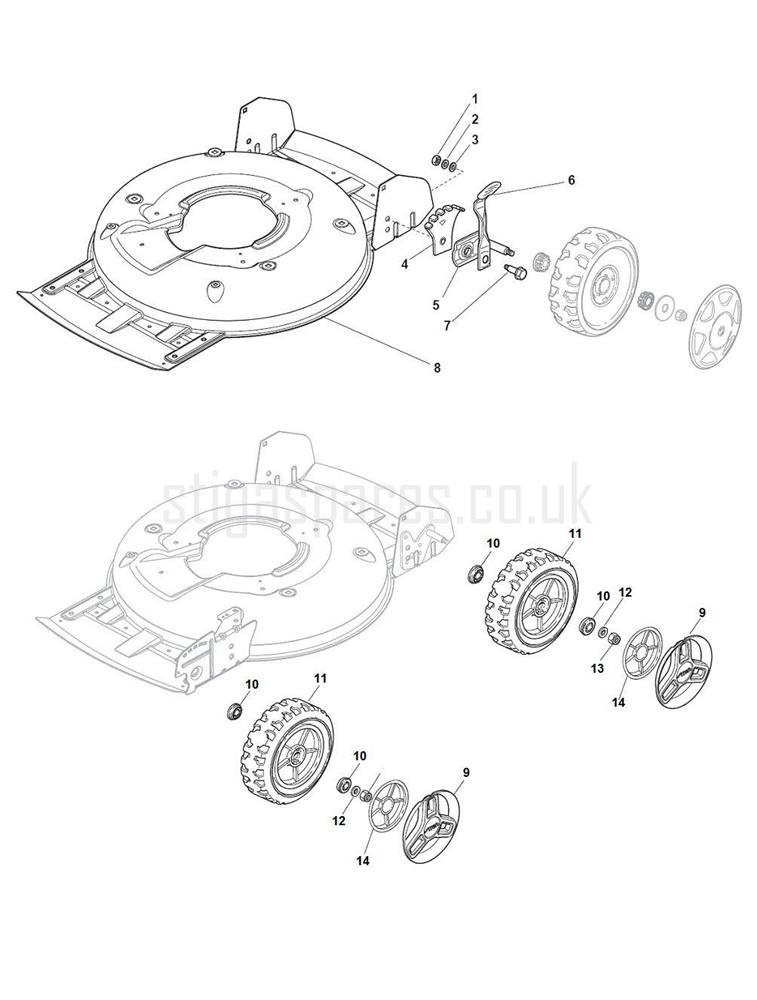

CHASSIS assembly details for Stiga MULTICLIP 50 (ST45 140cc OHV) 291501048 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
002112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
003112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
004322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
005381005175/0WHEEL STUB AXLE£8.84 Add to
006481003286/0HEIGHT ADJUST LEVER£5.19 Add to
007122519811/0WHEEL BOLT£2.06 Add to
008381004734/0DECK MULTICLIP 50 [GREY]£216.11 Add to
009322110755/0STIGA HUB CAP D=210 [GREY]£2.32 Add to
010119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
011381007490/0WHEEL ASSEMBLY D=210 [ECO]£26.18 Add to
012112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
014322110756/0STIGA HUB CAP COVER D=210£3.15 Add to
