ENGINE-WBE0702 CYLINDER HEAD

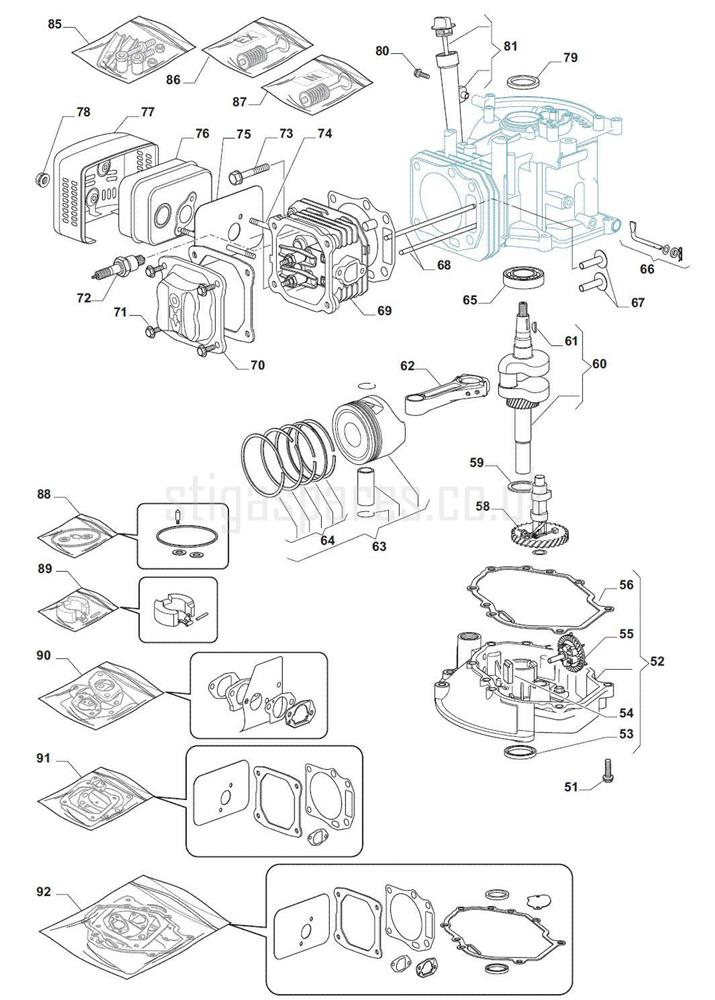

ENGINE-WBE0702 CYLINDER HEAD assembly details for Stiga MULTICLIP 50 (ST45 140cc OHV) 291501048 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
051112674550/0SCREW TE M6 x 30£2.06 Add to
052118550382/0CRANKCASE COVER£135.85 Add to
053118550379/0OIL SEAL£7.10 Add to
054118550775/0RUBBER GROMMET£2.78 Add to
055118550312/0SPEED GOVERNOR£19.38 Add to
056118550380/1CRANKCASE GASKET£16.36 Add to
058118550271/0CAMSHAFT£38.44 Add to
059118550283/0WASHER£3.69 Add to
060118550385/0CRANKSHAFT£109.47 Add to
061118550288/0WOODRUFF KEY£6.55 Add to
062118550284/0CONNECTING ROD£41.16 Add to
063118550387/0PISTON ASSEMBLY£46.61 Add to
064118550384/0PISTON RING SET£19.22 Add to
065118550280/0BALL BEARING£23.72 Add to
066118550308/0GOVERNOR ARM SHAFT£10.77 Add to
067118550291/0VALVE LIFTER£10.09 Add to
068118550289/0PUSH RODS£9.78 Add to
069118550244/0CYLINDER HEAD ASSEMBLY£129.74 Add to
070118550296/1CYLINDER HEAD COVER£15.00 Add to
071112791213/1SCREW M6 X 18£1.74 Add to
0729400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
073118550297/0SCREW£6.69 Add to
074118550298/0STUD BOLT£7.04 Add to
075118550270/0MUFFLER GASKET£12.55 Add to
076118550269/0MUFFLER£35.71 Add to
077118550268/1MUFFLER GUARD£34.35 Add to
078112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
079118550300/0OIL SEAL£7.63 Add to
080112674550/0SCREW TE M6 x 30£2.06 Add to
081118550311/0OIL DIPSTICK ASSEMBLY£26.18 Add to
085118550273/0VALVE ARM SET£14.18 Add to
086118550294/0EXHAUST VALVE£27.27 Add to
087118550292/0INTAKE VALVE£26.18 Add to
088118550389/0CARBURETTOR REPAIR KIT£10.09 Add to
089118550388/0CARBURETTOR FLOAT KIT£14.89 Add to
090118550743/0ENGINE GASKET SET (WBE0701-02)£16.94 Add to
091118550405/0CYLINDER HEAD GASKET SET£31.63 Add to
092118550741/0ENGINE GASKET SET (WBE0702)£46.61 Add to
