HANDLES

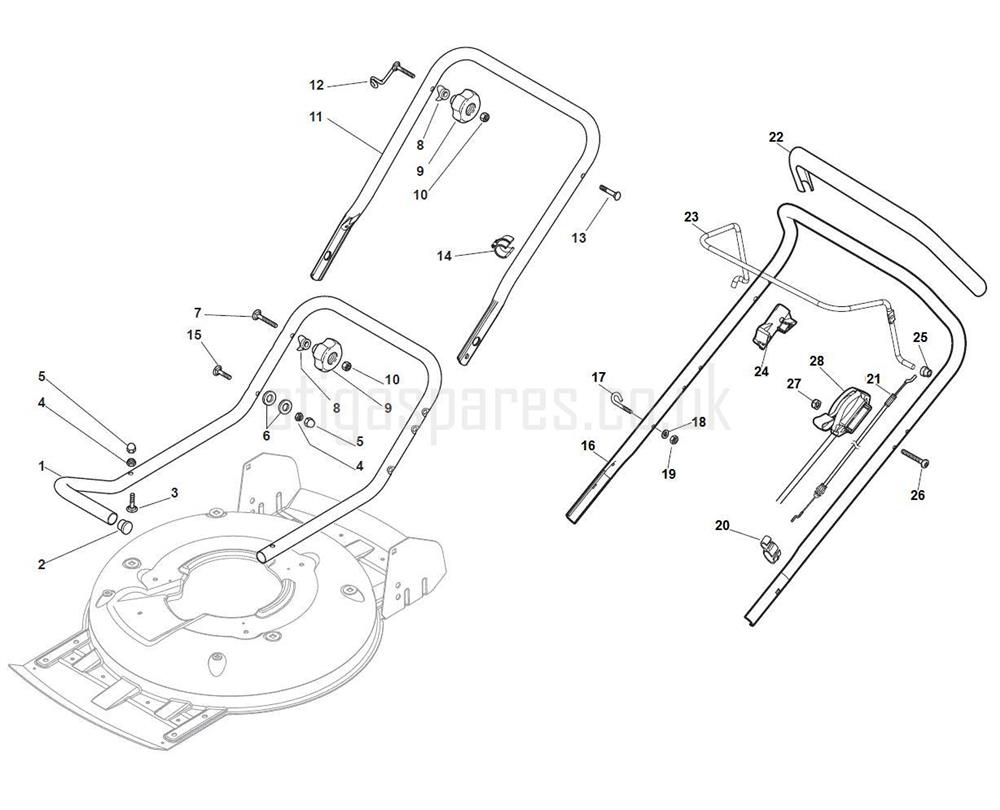

HANDLES assembly details for Stiga MULTICLIP 50 (ST45 140cc OHV) 291501048 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006677/0LOWER HANDLE [YELLOW] MCS50£42.53 Add to
001122463012/4BLADE BOSS D=22.2£8.73 Add to
002181004146/0MULTICLIP BLADE 48/50cm£15.94 Add to
002118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
003112818900/0SCREW TTDQ M8 x 35£1.97 Add to
003122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
004112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
005118203854/0NUT CAP M8 [BLACK]£2.06 Add to
005112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
006112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
006122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
007112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
007112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
008112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
008122680006/1PLASTIC WASHER£1.91 Add to
009122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
009322207219/1ENGINE MOUNTING PLATE [BLACK]£24.81 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
011381007542/0HANDLE MIDDLE PART MCS504 YELLOW STIGA£32.37 Add to
011112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
012122430313/0PULL CORD GUIDE£4.37 Add to
013112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
014118390020/0CABLE CLIP£1.91 Add to
015112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
016381007543/0UPPER HANDLE NT LUX YELLOW STIGA£30.30 Add to
017122430313/0PULL CORD GUIDE£4.37 Add to
018112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
019112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
020118390020/0CABLE CLIP£1.91 Add to
021181030056/0ENGINE BRAKE CABLE£15.06 Add to
022122291050/0HANDLE GRIP [BLACK]£14.58 Add to
023381003373/1ENGINE BRAKE LEVER [YELLOW]£21.26 Add to
024322545204/0LEVER FULCRUM PLATE£2.02 Add to
025122041966/0CONTROL LEVER BUSH£2.06 Add to
026112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
027112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
028181005517/0THROTTLE CABLE L=1020£21.04 Add to
