CHASSIS

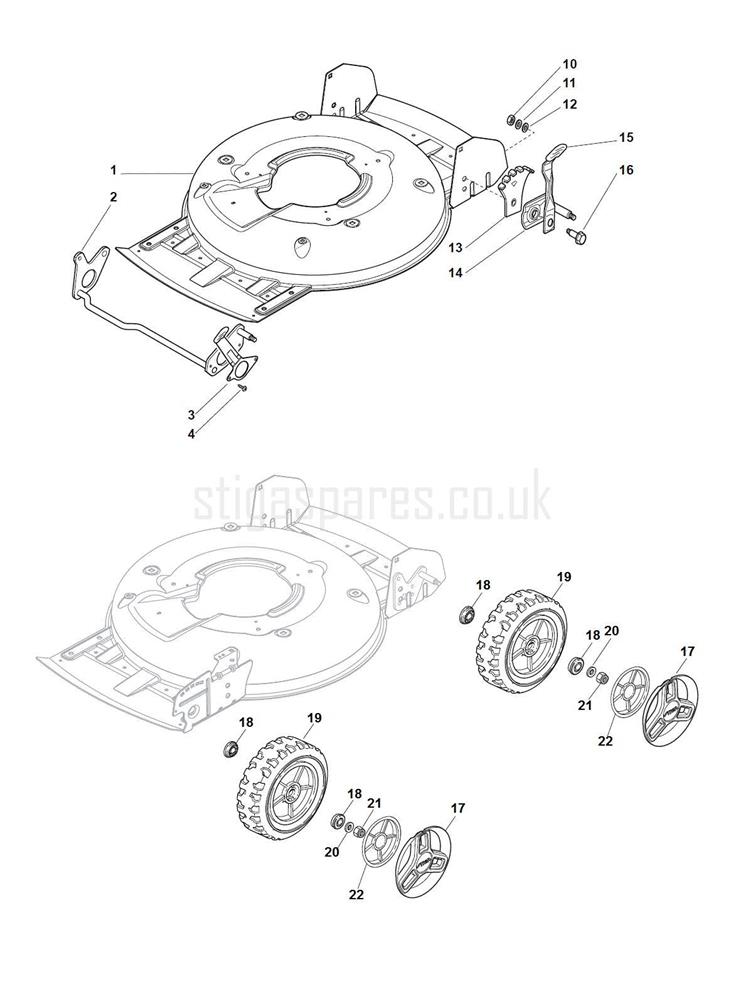

CHASSIS assembly details for Stiga MULTICLIP 50S (ST45 140cc OHV) 291502048 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004734/0DECK MULTICLIP 50 [GREY]£216.11 Add to
002381302863/0FRONT WHEELS AXLE£47.97 Add to
003322321546/0HEIGHT ADJUST LEVER£10.09 Add to
004112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
010112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
011112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
012112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
013322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
014381005175/0WHEEL STUB AXLE£8.84 Add to
015481003286/0HEIGHT ADJUST LEVER£5.19 Add to
016122519811/0WHEEL BOLT£2.06 Add to
017322110755/0STIGA HUB CAP D=210 [GREY]£2.32 Add to
018119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
019381007490/0WHEEL ASSEMBLY D=210 [ECO]£26.18 Add to
020112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
021112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
022322110756/0STIGA HUB CAP COVER D=210£3.15 Add to
