HANDLES

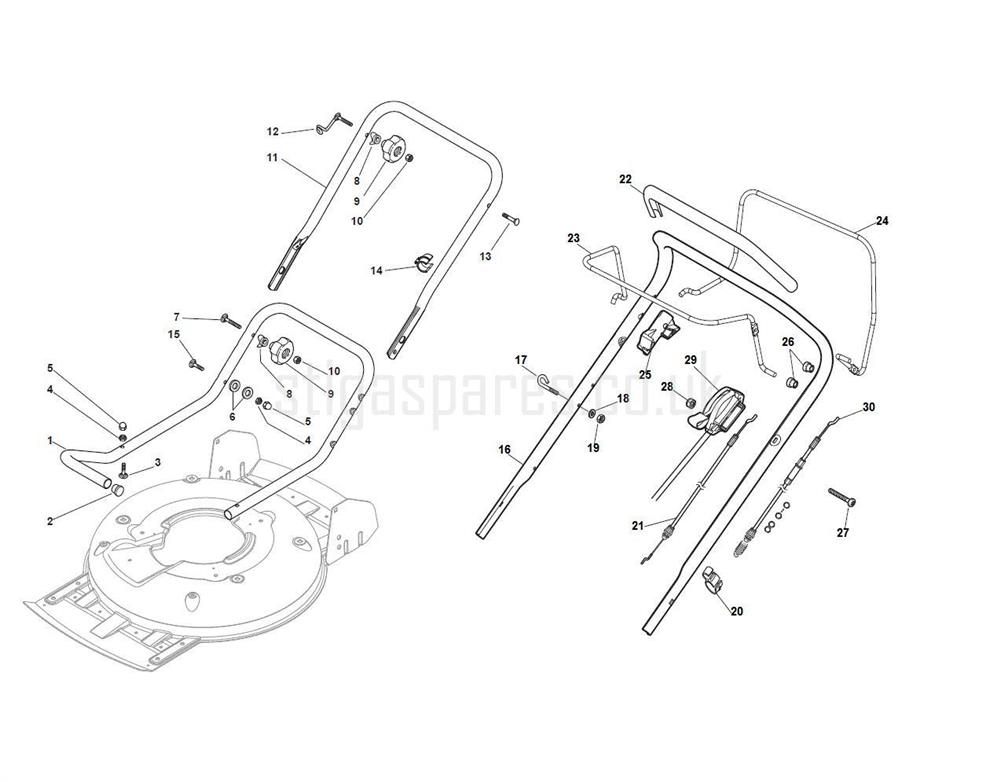

HANDLES assembly details for Stiga MULTICLIP 50S (ST45 140cc OHV) 291502048 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006677/0LOWER HANDLE [YELLOW] MCS50£42.53 Add to
002118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
003112818900/0SCREW TTDQ M8 x 35£1.97 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
005118203854/0NUT CAP M8 [BLACK]£2.06 Add to
006122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
007112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
008122680006/1PLASTIC WASHER£1.91 Add to
009122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
010112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
011381007542/0HANDLE MIDDLE PART MCS504 YELLOW STIGA£32.37 Add to
012122430313/0PULL CORD GUIDE£4.37 Add to
013112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
014118390020/0CABLE CLIP£1.91 Add to
015112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
016381007543/0UPPER HANDLE NT LUX YELLOW STIGA£30.30 Add to
017122430313/0PULL CORD GUIDE£4.37 Add to
018112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
019112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
020118390020/0CABLE CLIP£1.91 Add to
021181030056/0ENGINE BRAKE CABLE£15.06 Add to
022122291050/0HANDLE GRIP [BLACK]£14.58 Add to
023181003300/1ENGINE BRAKE LEVER£15.54 Add to
024181003301/0DRIVE CONTROL LEVER£15.41 Add to
025322545204/0LEVER FULCRUM PLATE£2.02 Add to
026122041966/0CONTROL LEVER BUSH£2.06 Add to
027112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
028112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
029181005517/0THROTTLE CABLE L=1020£21.04 Add to
030381030096/0USE 381030096/1N/A POA
