HANDLES

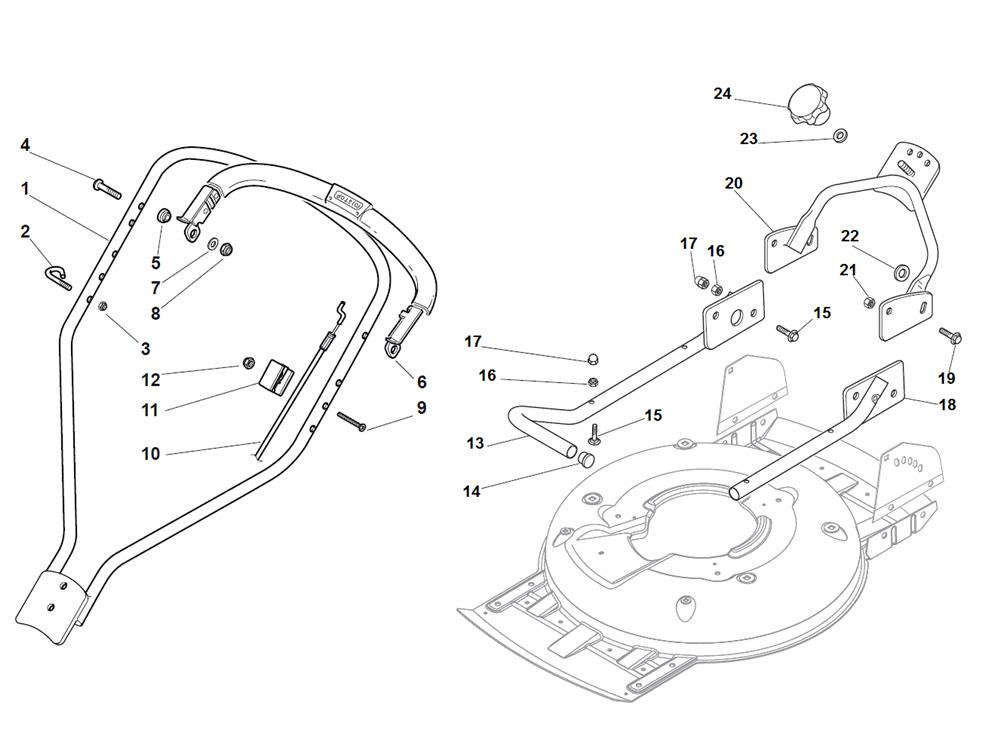

HANDLES assembly details for Stiga MULTICLIP PRO 50 SVAN (H160) 291501138 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006371/0UPPER HANDLE PRO MC [GREY]£124.82 Add to
002122430314/0PULL CORD GUIDE£6.27 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
004112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
005122671660/1WASHER£3.69 Add to
006381003318/1ENGINE BRAKE LEVER£34.35 Add to
007112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
008112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
009112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
010181000769/1ENGINE BRAKE CABLE L=1206£14.74 Add to
011322551639/0CABLE HOLDER BLOCK D=25£14.93 Add to
012112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
013381006385/0LOWER HANDLE R/H [GREY] MCS50 (OBSOLETE) (OBSOLETE)N/A
014118566114/0HANDLE CAP [BLACK]£2.06 Add to
015112819100/0CARRIAGE BOLT M8 x 40£2.06 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
017118203854/0NUT CAP M8 [BLACK]£2.06 Add to
018381006387/0LOWER HANDLE L/H [GREY] MCS50£38.44 Add to
019112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
020381006369/2MIDDLE HANDLE MC PRO [GREY]£107.93 Add to
021112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
022112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
023112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
024322399813/0HANDLE KNOB [BLACK]£20.89 Add to
