HANDLES

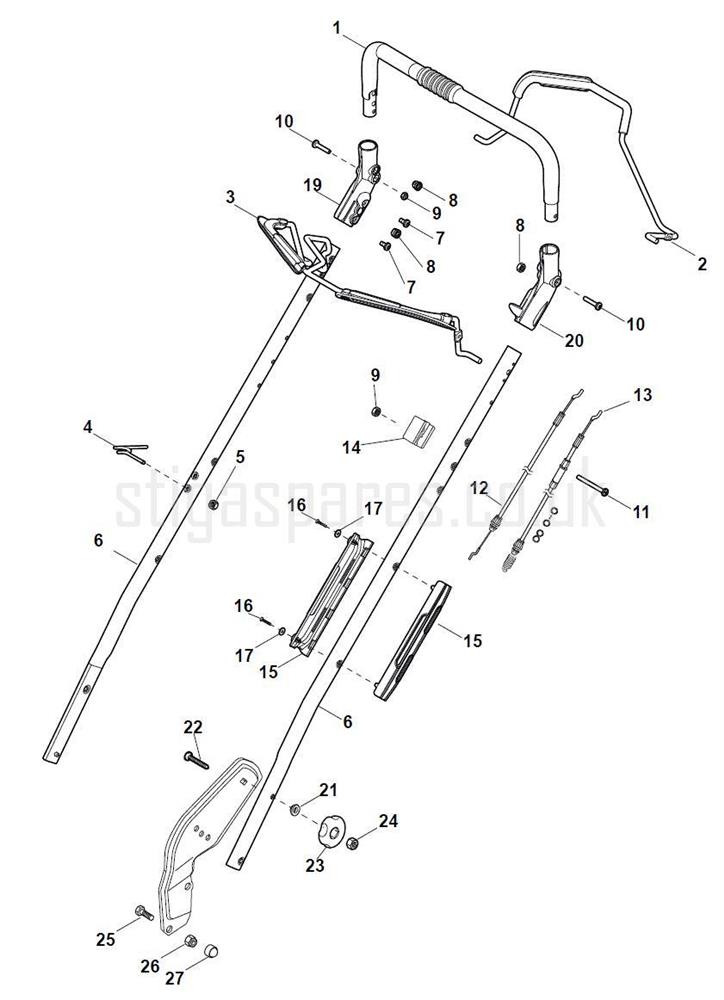

HANDLES assembly details for Stiga TURBO POWER 53 SB (B&S 675 EX 292166028 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006670/2HANDLE TUBE [BLACK]£28.90 Add to
002381003349/0CLUTCH DRIVE LEVER [BLACK]£45.66 Add to
003381003344/0ENGINE BRAKE LEVER [RED]£39.98 Add to
003381003472/1ENGINE BRAKE LEVER [BLACK]£47.16 Add to
004122430309/0PULL CORD GUIDE£2.87 Add to
005112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
006381007047/0UPPER HANDLE ASTRAL GREY DMxNP£68.42 Add to
007112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
008322041967/1BUSH£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
010112728721/0SCREW M6 x 30£1.91 Add to
011112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
012181030101/0ENGINE BRAKE CABLE L=1333£14.82 Add to
013381030098/0CLUTCH DRIVE CABLE£21.90 Add to
014322551639/0CABLE HOLDER BLOCK D=25£14.93 Add to
015322806644/0CABLE PROTECTION BAND£2.87 Add to
016112727812/0SELF-TAPPING SCREW TCB 3.5 x 22£2.06 Add to
017112523000/1WASHER M4 4.3 X 12 X 1£1.98 Add to
019322488301/0RIGHT HANDLE SLEEVE [GREY]£24.95 Add to
020322488303/0LEFT HANDLE SLEEVE [GREY]£24.95 Add to
021122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
022112819105/0SCREW TTDQ M8 x 45£2.06 Add to
023122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
024112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
025112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
026112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
027118203854/0NUT CAP M8 [BLACK]£2.06 Add to
