BLADE

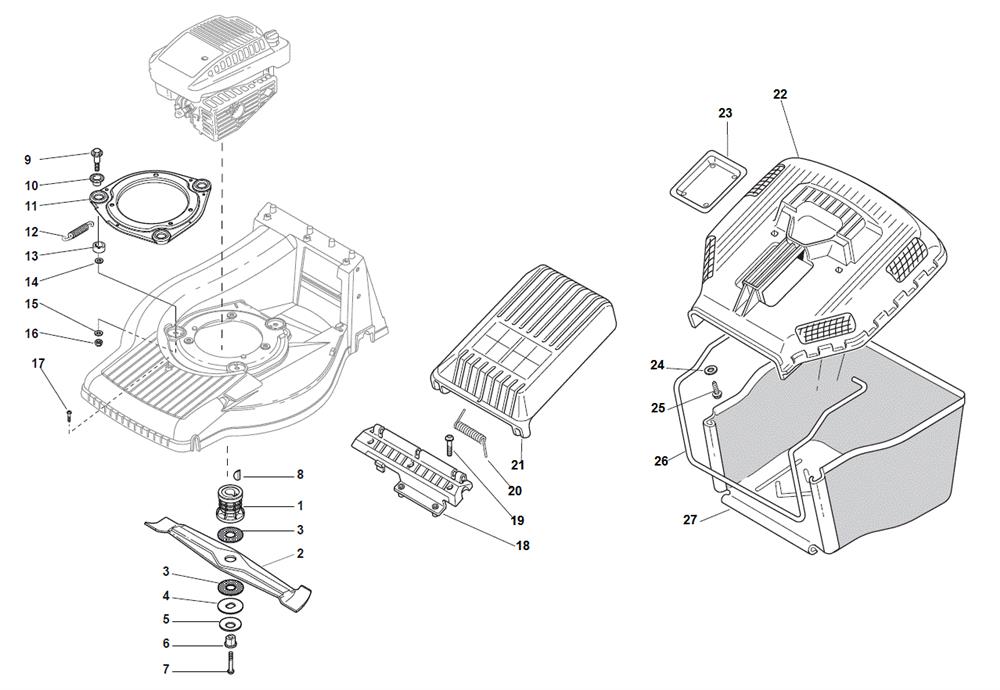

BLADE assembly details for Stiga TURBO PRO 55 S4 B (B&S 850 E) 292553028 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465636/0FRICTION BLADE BOSS D=22.2£34.35 Add to
002181004134/0FRICTION BLADE 55cm£31.63 Add to
003322672111/0FRICTION WASHER 18.3 x 55 x 1.5£4.11 Add to
004322672105/0BLADE WASHER 60 x 18 x 2£1.91 Add to
005112508120/0SPRING WASHER 18.4 x 50 x 2£3.72 Add to
006122041940/0METAL BUSH 25 x 19 x 15£5.87 Add to
007112736825/0HEX-HEAD SCREW 3/8" x 3 1/4"£2.87 Add to
008112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
009122524329/0HEXAGON BOLT M8£12.68 Add to
010322672201/0RUBBER GROMMET£6.27 Add to
011381207221/1ENGINE MOUNTING PLATE AVS [YELLOW] MCS50£32.99 Add to
012122450445/0BELT TENSION SPRING£10.50 Add to
013322250012/0AVS RUBBER DAMPER£9.00 Add to
014122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
015112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
017112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
018322785157/0DEFLECTOR SUPPORT [YELLOW]£17.51 Add to
019112735664/0SCREW M6 x 16£2.02 Add to
020122450430/0DEFLECTOR SPRING£5.19 Add to
021322600069/2DEFLECTOR [YELLOW]£15.84 Add to
022322486359/0UPPER GRASSTOP [GREY]£35.71 Add to
023322486098/0GRASSTOP INSERT£6.01 Add to
024112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
025112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
026122608528/0GRASSCATCHER FRAME (OBSOLETE) (OBSOLETE)N/A
027181002235/0GRASSBAG [BLACK]£60.15 Add to
