CHASSIS

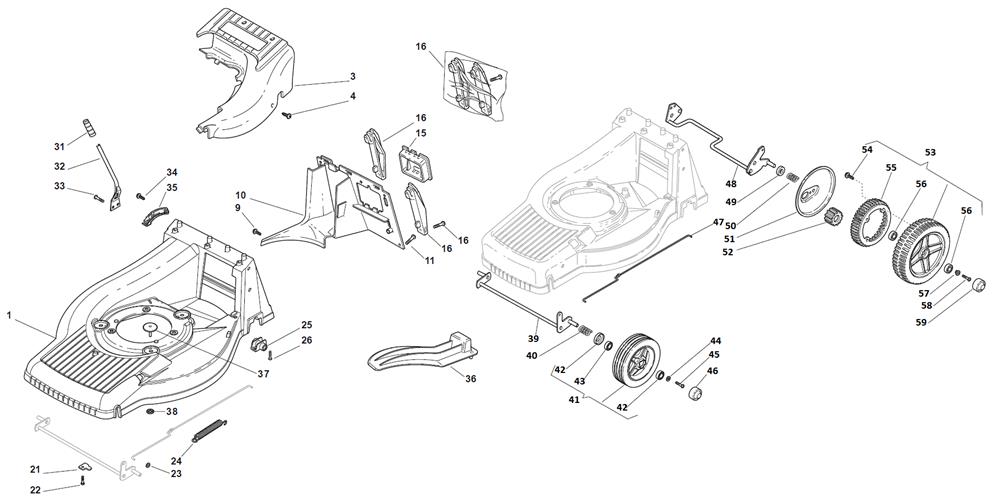

CHASSIS assembly details for Stiga TURBO PRO 55 S4 B (B&S 850 E) 292553028 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004738/0CHASSIS GREY TURBO 55£598.57 Add to
003322060177/0DECK COVER TU55 [GREY]£17.41 Add to
004112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
009112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
010322108277/0PLASTIC REAR BAFFLE£46.14 Add to
011112735664/0SCREW M6 x 16£2.02 Add to
015322109531/0BATTERY COVER£2.87 Add to
016381008658/1ACCESSORY BAG-GRASSCATCHER£17.86 Add to
021322545160/0FRONT AXLE PLATE (OBSOLETE) (OBSOLETE)N/A
022112735664/0SCREW M6 x 16£2.02 Add to
023112604898/0STARLOCK WASHER D=7£2.02 Add to
024122446181/0SPRING£7.10 Add to
025322785153/0GEARBOX SUPPORT BRACKET£16.10 Add to
026112735664/0SCREW M6 x 16£2.02 Add to
031322399808/0HEIGHT ADJUST KNOB£2.87 Add to
0321111-2816-01HEIGHT ADJUST LEVER (OBSOLETE)N/A
033112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
034112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
035322735563/0HEIGHT ADJUST QUADRANT£15.41 Add to
036322140232/0MULCHING PLUG [TURBO 55] (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
038112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
039381002825/0FRONT WHEEL AXLE (OBSOLETE) (OBSOLETE)N/A
040122430210/0SPRING£2.06 Add to
041381007364/0ALUMINIUM WHEEL ASSEMBLY 190mm£59.05 Add to
042322160522/0DUST COVER£3.28 Add to
043119216039/0BEARING 6001-2Z C3£3.69 Add to
044112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
045112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
046322110379/0HUB CAP D=175/190 [BLACK]£7.63 Add to
047122033324/0WHEELS CONTROL ROD TU55 (L=642)£11.53 Add to
048381002823/0REAR WHEELS AXLE (OBSOLETE)N/A
049122170810/0REAR WHEEL SPACER£4.10 Add to
050122430215/0SPRING£3.69 Add to
051322600127/0WHEEL PROTECTION 205/215 ZNW TU TR£10.95 Add to
052122570126/0PINION GEAR D=40£15.41 Add to
053381007368/0ALUMINIUM WHEEL ASSEMBLY 215mm£102.48 Add to
054112728210/0SCREW TORX M4 x 10£1.79 Add to
055322120108/0PLASTIC DRIVE GEAR£12.00 Add to
056119216038/0BEARING 6201-2RS C3£6.27 Add to
057122671655/0FIXING WASHER REAR WHEELS TU£6.71 Add to
058112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
059322110380/0HUB CAP [BLACK]£3.15 Add to
