HANDLES

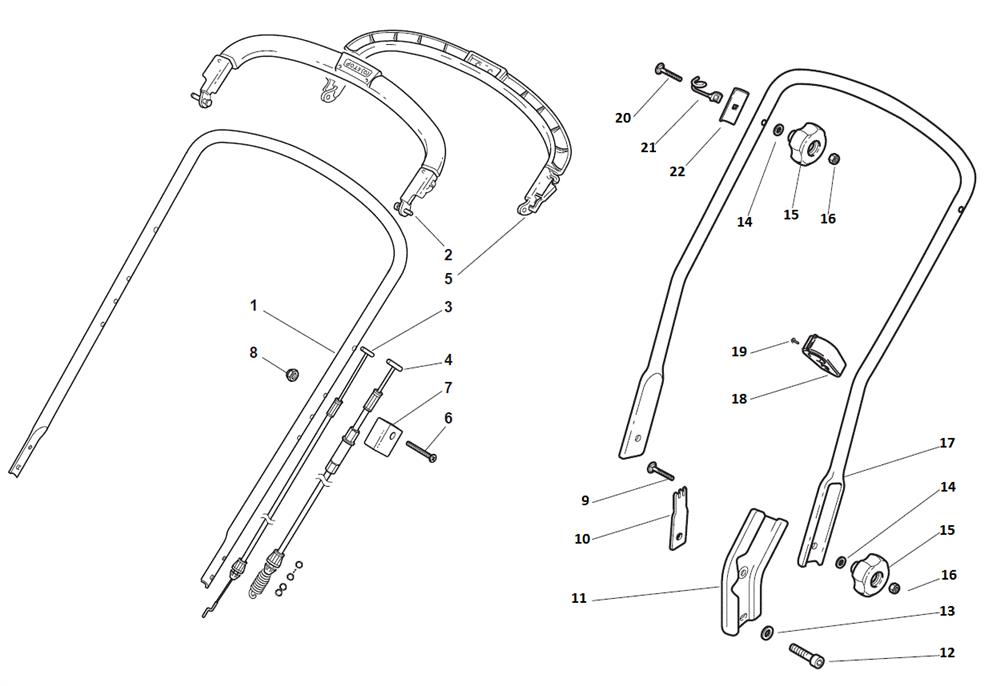

HANDLES assembly details for Stiga TURBO PRO 55 S4 B (B&S 850 E) 292553028 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006866/0UPPER HANDLE ASTRAL GREY TURBO50-55£28.90 Add to
002381003320/1BRAKE LEVER ASSEMBLY£64.40 Add to
003181030061/0ENGINE BRAKE CABLE L=1282£13.77 Add to
004381000697/0CLUTCH DRIVE CABLE£20.25 Add to
005381003297/1DRIVE CONTROL LEVER£22.49 Add to
006112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
007322551685/0CABLE HOLDER BLOCK£7.52 Add to
008112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
009112820655/0SCREW TTDQ 1/4" x 2 1/4"£1.79 Add to
010322551635/0ATTACHMENT PLATE£4.23 Add to
011322778405/0LOWER HANDLE SUPPORT CLAMP£24.95 Add to
012112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
013112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
014112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
015322399810/0HANDWHEEL w/o NUT [BLACK]£8.73 Add to
016112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
017381006865/0LOWER HANDLE ASTRAL GREY TU50-55 PRO£43.87 Add to
018322192001/0CABLE CLAMP£2.06 Add to
019112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
020112820655/0SCREW TTDQ 1/4" x 2 1/4"£1.79 Add to
021122430311/0PULL CORD GUIDE£6.87 Add to
022322545137/0HANDLE CLAMP PLATE£2.06 Add to
