TRANSMISSION

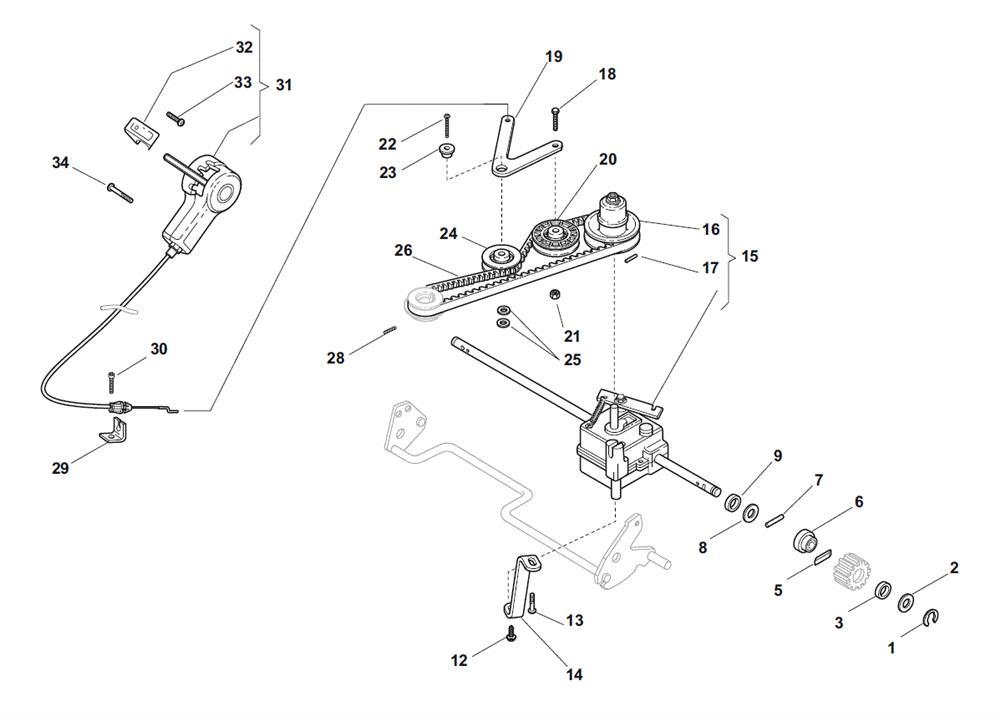

TRANSMISSION assembly details for Stiga TURBO PRO 55 S4 B (B&S 850 E) 292553028 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112000957/0CIRCLIP D=10£2.59 Add to
002112520032/0WASHER 12 x 18 x 1£2.06 Add to
003322160520/0DUST COVER£2.06 Add to
005122076645/0DRIVE KEY 4 x 8 x 15£2.06 Add to
006322170630/1GEARBOX PINION SPACER£5.32 Add to
007122753002/0CYLINDRICAL PIN 5 x 25£2.06 Add to
008112520032/0WASHER 12 x 18 x 1£2.06 Add to
009119035152/0SEAL RING 12 x 18 x 4£5.19 Add to
012112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
013112735664/0SCREW M6 x 16£2.02 Add to
014322778407/0GEARBOX SUPPORT BRACKET£11.46 Add to
015181003086/0GEARBOX 4 SPEED [BLACK]£230.29 Add to
016122601932/0VARIATOR PULLEY£58.87 Add to
017112645700/0PIN£2.06 Add to
018112674550/0SCREW TE M6 x 30£2.06 Add to
019322320003/0TENSION ARM£14.45 Add to
020122601914/0BELT GUIDE PULLEY£21.95 Add to
021112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
022112735669/0SCREW TCB TORX M6 x 50£2.06 Add to
023122671656/0WASHER£6.42 Add to
024122601915/0TENSION PULLEY£21.82 Add to
025112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
026135064383/0TRAPEZOIDAL BELT XPZ LP=837£15.04 Add to
028112714312/0DOWEL PIN M6 x 12£2.06 Add to
029322806619/0WZ SPEED CABLE FIX.SUPPORT TURBO 4S£5.05 Add to
030112735664/0SCREW M6 x 16£2.02 Add to
031381007098/04 SPEED CABLE ASSEMBLY£46.06 Add to
032322399809/04 SPEED CABLE KNOB£2.06 Add to
033112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
034112728702/0SELF-TAP SCREW WN1451 K50 x 40£2.06 Add to
