GRASSCATCHER

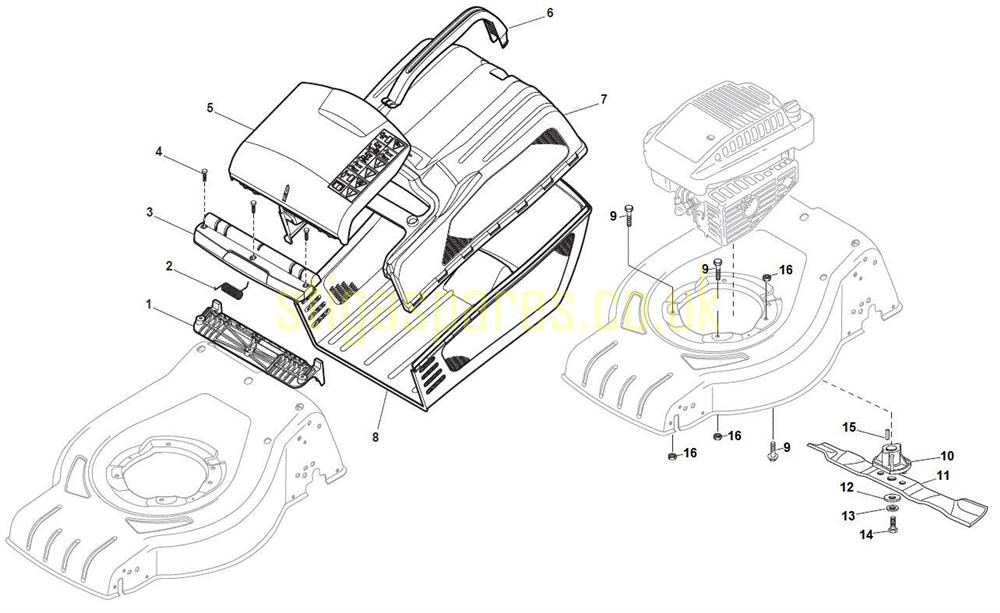

GRASSCATCHER assembly details for Stiga COLLECTOR 43 (RS100 OHV) 295431048/S14 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322785331/0	DEFLECTOR SUPPORT [BLACK]	£6.94	Add to
002	122450464/0	DEFLECTOR SPRING	£2.18	Add to
003	322109556/0	DEFLECTOR FIXING [YELLOW]	£4.82	Add to
004	112728699/0	SELF-TAPPING SCREW K60 x 22	£2.06	Add to
005	322600214/1	DEFLECTOR [YELLOW]	£12.96	Add to
006	322393716/0	GRASSCATCHER HANDLE [GREY]	£5.46	Add to
007	322486387/0	UPPER GRASSBOX [GREY]	£35.11	Add to
008	322486388/0	LOWER GRASSBOX [GREY]	£33.79	Add to
009	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
010	122463012/4	BLADE BOSS D=22.2	£8.73	Add to
011	181004341/3	BLADE 41cm	£13.77	Add to
012	122160400/0	SPRING WASHER 50 x 2 x 10.2	£2.18	Add to
013	112523080/0	WASHER M10 11 x 30 x 2.5	£2.06	Add to
014	112735698/0	HEX-HEAD SCREW 3/8" x 2"	£2.02	Add to
015	112139100/0	WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40	£2.06	Add to
016	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
