WHEEL SUSPENSION

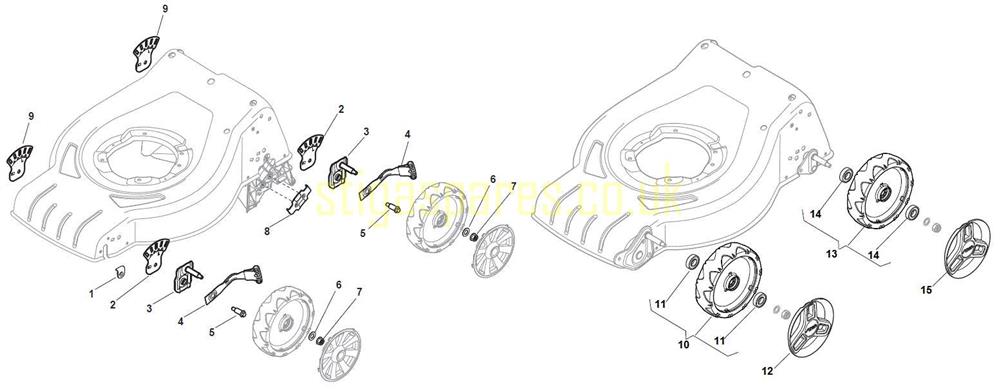

WHEEL SUSPENSION assembly details for Stiga COLLECTOR 43 (RS100 OHV) 295431048/S14 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322545189/0HANDLE FIXING PLATE£2.06 Add to
002322735597/1HEIGHT ADJUST QUADRANT L/H£2.54 Add to
003381005141/0WHEEL STUB AXLE£11.30 Add to
004381003354/0HEIGHT ADJUST LEVER£6.79 Add to
005122519811/0WHEEL BOLT£2.06 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
008322545211/0HANDLE FIXING PLATE£2.87 Add to
009322735595/1HEIGHT ADJUST QUADRANT R/H£3.00 Add to
010381007455/1WHEEL ASSEMBLY 180mm£17.26 Add to
011119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
012322110744/0STIGA HUB CAP D180/200 [GREY]£3.83 Add to
013381007455/1WHEEL ASSEMBLY 180mm£17.26 Add to
014119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
015322110744/0STIGA HUB CAP D180/200 [GREY]£3.83 Add to
