CHASSIS

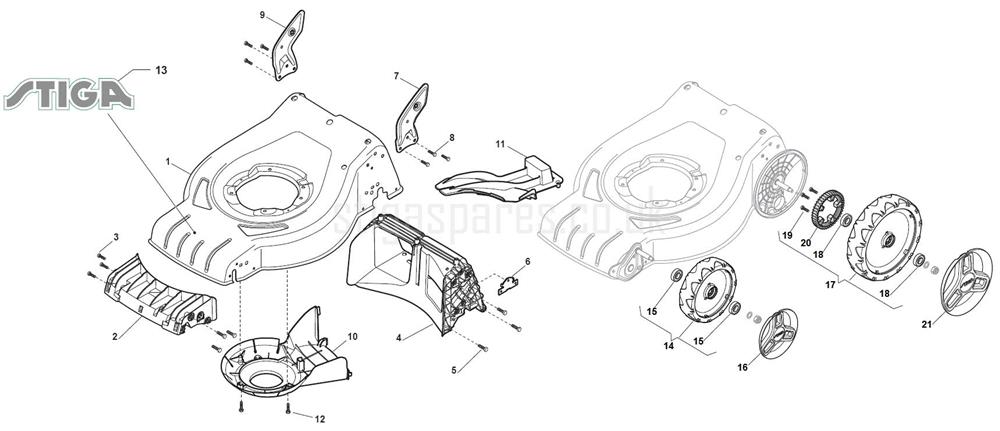

CHASSIS assembly details for Stiga COMBI 48 SB (B&S 550 Series) 295486028/S14 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004729/0STEEL DECK CR48 [GREY]£122.16 Add to
002322108301/1PLASTIC FRONT BAFFLE£16.79 Add to
003112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
004322108392/0PLASTIC REAR BAFFLE£20.72 Add to
005112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
006322545213/0FIXING PLATE£2.06 Add to
007381005139/0LEFT HANDLE BRACKET£7.10 Add to
008112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
009381005137/0RIGHT HANDLE BRACKET£6.69 Add to
010322060242/2BELT PROTECTION GUARD CR48£11.59 Add to
011322140239/1MULCHING PLUG [CRUISER 48]£11.87 Add to
012112728903/0SCREW£1.69 Add to
013114367494/2EMBLEMA LABEL STIGA 3D 93 x 19mm£9.54 Add to
014381007445/0WHEEL ASSEMBLY 180mm [CRUISER] SHORT HUB£13.87 Add to
015119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
016322110744/0STIGA HUB CAP D180/200 [GREY]£3.83 Add to
017381007467/1DRIVE WHEEL ASSEMBLY D=240mm£31.63 Add to
018119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
019112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
020322120117/0PLASTIC DRIVE GEAR D=240£5.32 Add to
021322110745/0STIGA HUB CAP D240 [GREY]£4.78 Add to
