GUARDS

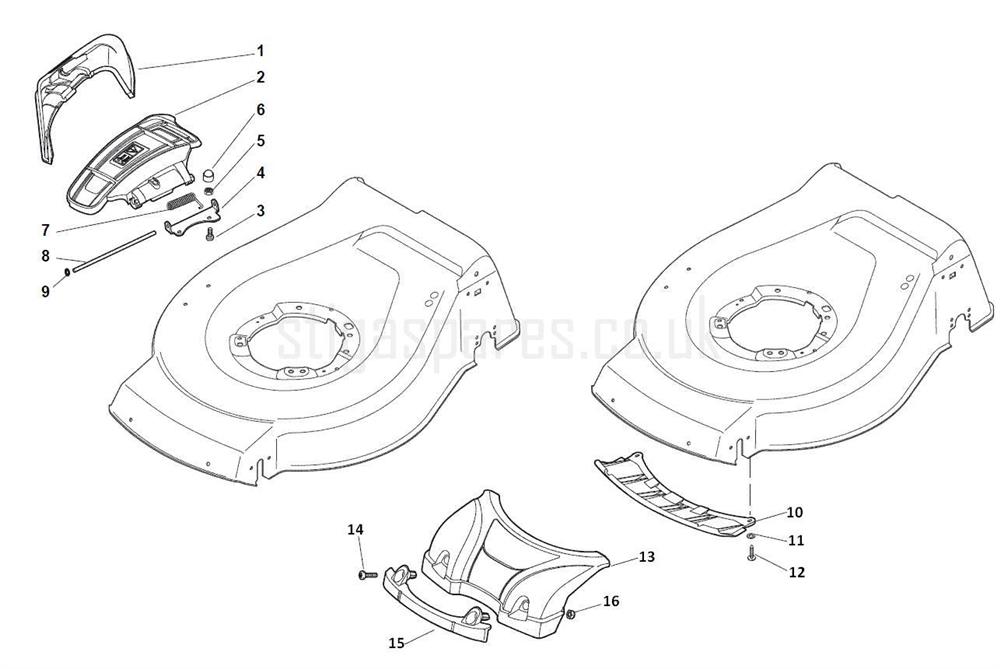

GUARDS assembly details for Stiga COMBI 53 SQ B (B&S 675 EX) 299536828/S14 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322108295/1	SIDE EJECTION GUARD [BLACK]	£10.50	Add to
002	381008159/0	SIDE STONE GUARD ASS.Y NT BLACK	£27.41	Add to
003	112727803/0	SCREW TCB TORX M6 x 14	£2.06	Add to
004	322806639/0	FULCRUM BRACKET	£3.00	Add to
005	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
006	118203853/0	BLACK NUT CAP M6	£3.00	Add to
007	122450456/1	DEFLECTOR SPRING	£3.69	Add to
008	122517869/0	DEFLECTOR ROD	£4.37	Add to
009	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
010	322500103/0	UNDER DECK COVER 51cm	£5.32	Add to
011	112523000/1	WASHER M4 4.3 X 12 X 1	£1.98	Add to
012	112728124/0	SELF-TAP SCREW TCB TORX 4.2 X 16	£1.74	Add to
013	322226196/0	FRONT COVER [GREY] NT53	£14.86	Add to
014	112727799/0	SCREW TCB TORX M6 x 35	£2.18	Add to
015	322393639/0	FRONT HANDLE [GREY]	£7.10	Add to
016	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
