HANDLES

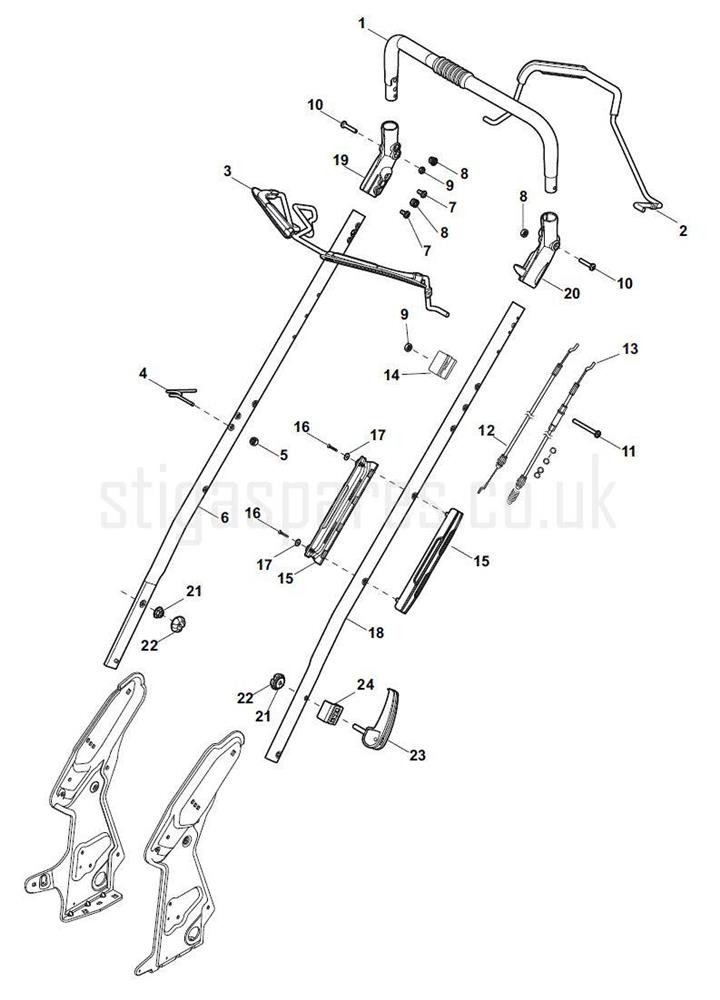

HANDLES assembly details for Stiga EXCEL 50 S4Q B (B&S 750 EX) 290507028/S14 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006670/2HANDLE TUBE [BLACK]£28.90 Add to
002381003349/0CLUTCH DRIVE LEVER [BLACK]£45.66 Add to
003381003344/0ENGINE BRAKE LEVER [RED]£39.98 Add to
004122430309/0PULL CORD GUIDE£2.87 Add to
005112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
006381006821/0RIGHT STUMP ASS.Y D=25 DM ASTRAL GREY£35.71 Add to
007112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
008322041967/1BUSH£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
010112728721/0SCREW M6 x 30£1.91 Add to
011112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
012181030066/0ENGINE BRAKE CABLE DM50/55£15.52 Add to
013381030068/0CLUTCH DRIVE CABLE£21.90 Add to
014322551639/0CABLE HOLDER BLOCK D=25£14.93 Add to
015322806644/0CABLE PROTECTION BAND£2.87 Add to
016112727812/0SELF-TAPPING SCREW TCB 3.5 x 22£2.06 Add to
017112523000/1WASHER M4 4.3 X 12 X 1£1.98 Add to
018381006823/0LEFT STUMP ASS.Y D=25 DM ASTRAL GREY£50.70 Add to
019322488301/0RIGHT HANDLE SLEEVE [GREY]£24.95 Add to
020322488303/0LEFT HANDLE SLEEVE [GREY]£24.95 Add to
0211137-0155-01SPACER£4.52 Add to
022381004310/0HANDLE FIXING ASSEMBLY£2.32 Add to
023381103359/1LOCKING HANDLE LEVER L=62 [BLACK]£5.07 Add to
024322680017/0HANDLE BRACKET£2.06 Add to
