TRANSMISSION

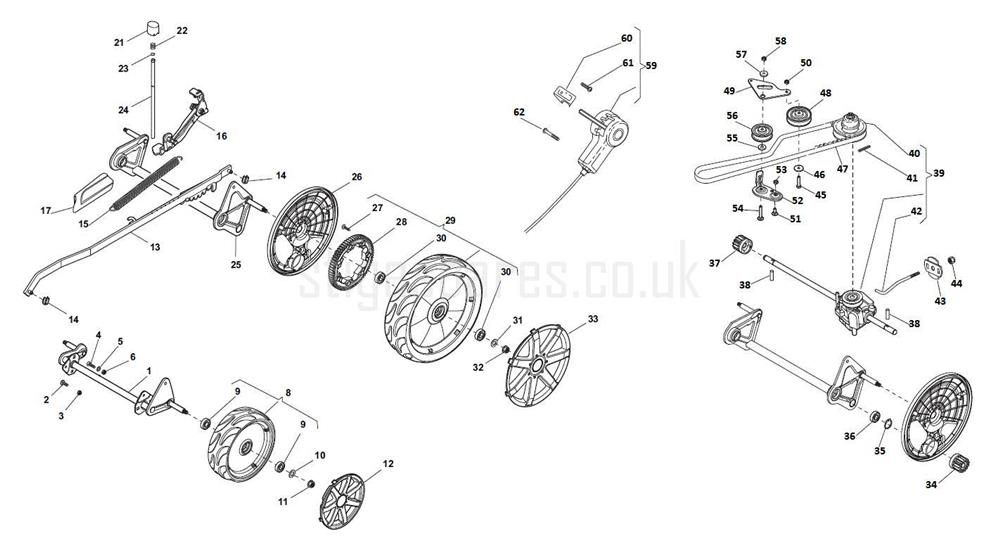

TRANSMISSION assembly details for Stiga EXCEL 50 S4Q B (B&S 750 EX) 290507028/S14 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002869/1FRONT WHEEL AXLE D=210 DML50£45.35 Add to
002112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
004112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
005112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008381007394/1WHEEL ASSEMBLY D=210 C/W BEARINGS£31.89 Add to
009119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
010112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
012322110597/0DIAMOND HUB CAP D=210 [GREY] (OBSOLETE) (OBSOLETE)N/A
013381002034/0HEIGHT ADJUST TIE BAR£49.34 Add to
014112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
015122450459/1CENTRALIZATION STAFF SPRING DIAMOND£12.68 Add to
016381003337/1HEIGHT ADJUST LEVER (OBSOLETE) (OBSOLETE)N/A
017322570202/0ADJUSTMENT WHEELS POSITION PLATE DM50£5.10 Add to
021322602012/1CENTRALIZATION BUTTON DM RED 3002£2.14 Add to
022122450462/0SPRING£4.52 Add to
023112000930/0CIRCLIP D=6£0.79 Add to
024122033351/1CENTRALIZATION ROD PLUNGER DM 50-55£5.50 Add to
025381002899/0REAR WHEELS AXLE£65.94 Add to
026322600179/0INTERNAL WHEEL COVER (OBSOLETE)N/A
027112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
028322120113/0PLASTIC DRIVE GEAR D=300£12.14 Add to
029381007398/1WHEEL ASSEMBLY D=300£60.46 Add to
030119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
031112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
033322110598/0DIAMOND HUBCAP D=260 GREY RAL 9022£3.41 Add to
034122570132/0LEFT PINION GEAR£12.00 Add to
035112608600/0CIRCLIP D=12£2.08 Add to
036119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
037122570131/0RIGHT PINION GEAR£12.00 Add to
038122753000/0PIN D=5.2 x 25.65£2.06 Add to
039181003107/1GEARBOX 4 SPEED£184.64 Add to
040122601932/0VARIATOR PULLEY£58.87 Add to
041112645700/0PIN£2.06 Add to
042122033298/0GEARBOX ADJUSTER ROD£7.92 Add to
043322675113/0VARIATOR CLAMP WASHER£2.06 Add to
044112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
045112674550/0SCREW TE M6 x 30£2.06 Add to
046112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
047135064385/0BELT XPZ 820 C5XP£15.00 Add to
048122601914/0BELT GUIDE PULLEY£21.95 Add to
049322322835/0LEVER£5.32 Add to
050112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
051112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
052322806637/0LEVER SUPPORT£3.96 Add to
053112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
054112815240/0SCREW M6 x 40£1.91 Add to
055122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
056122601915/0TENSION PULLEY£21.82 Add to
057122671656/0WASHER£6.42 Add to
058112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
059381007189/0SPEED CONTROL ASS.Y 4S DM 50£41.16 Add to
060322399820/0SPEED CONTROL LEVER KNOB 4 SPEED TAMP.£3.69 Add to
061112728702/0SELF-TAP SCREW WN1451 K50 x 40£2.06 Add to
062112728536/0SELF-TAP SCREW TC SLZ 5.2 x 40£1.79 Add to
