BLADE

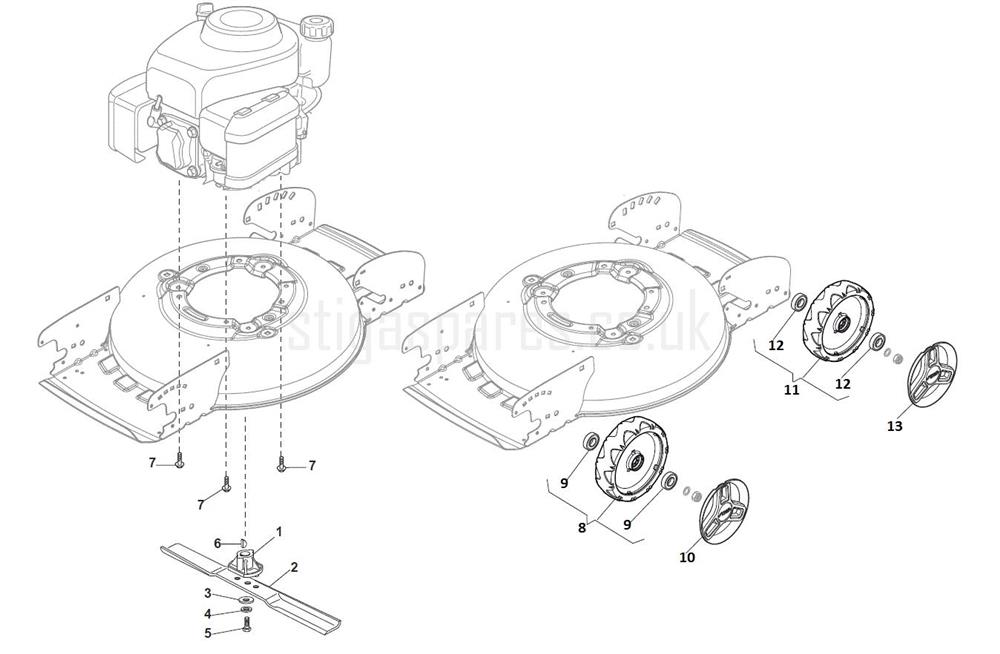

BLADE assembly details for Stiga MULTICLIP 47 BLUE (RS100 OHV) 298471048/S15 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	122463012/4	BLADE BOSS D=22.2	£8.73	Add to
002	181004158/0	MULCHING BLADE MCS 47	£14.86	Add to
003	112508128/0	SPRING WASHER 28 x 10 x 2,5	£1.79	Add to
004	112523080/0	WASHER M10 11 x 30 x 2.5	£2.06	Add to
005	112735698/0	HEX-HEAD SCREW 3/8" x 2"	£2.02	Add to
006	112139100/0	WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40	£2.06	Add to
007	112735109/2	"TELF-FORM SCREW TE FL 3/8X1"" 10.9 GEOM	£2.32	Add to
008	381007455/1	WHEEL ASSEMBLY 180mm	£17.26	Add to
009	119216035/0	BEARING 6001 2RS (12 x 28 x 8)	£3.83	Add to
010	322110744/0	STIGA HUB CAP D180/200 [GREY]	£3.83	Add to
011	381007455/1	WHEEL ASSEMBLY 180mm	£17.26	Add to
012	119216035/0	BEARING 6001 2RS (12 x 28 x 8)	£3.83	Add to
013	322110744/0	STIGA HUB CAP D180/200 [GREY]	£3.83	Add to
