HANDLES

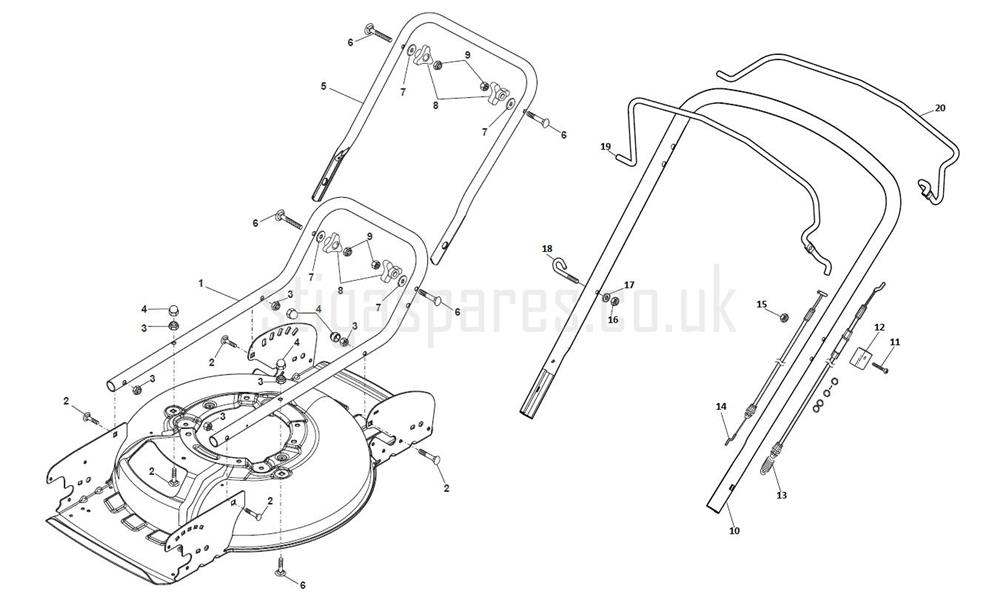

HANDLES assembly details for Stiga MULTICLIP 47S BLUE (RS100 OHV) 298472048/S15 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381007556/0	LOWER HANDLE [YELLOW] MCS 47	£39.01	Add to
002	112818900/0	SCREW TTDQ M8 x 35	£1.97	Add to
003	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
004	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
005	381007542/1	MIDDLE HANDLE [YELLOW] MCS 50-47	£42.53	Add to
006	112819121/0	CARRIAGE BOLT M8 X 55	£1.96	Add to
007	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
008	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
009	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
010	381007555/0	UPPER FLAT HANDLE [YELLOW]	£32.99	Add to
011	112727783/0	CROSS-HEAD SCREW M6 x 40	£2.06	Add to
012	322551685/0	CABLE HOLDER BLOCK	£7.52	Add to
013	381030103/0	CLUTCH DRIVE CABLE	£23.71	Add to
014	181030084/0	ENGINE BRAKE CABLE	£13.08	Add to
015	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
016	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
017	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
018	122430313/0	PULL CORD GUIDE	£4.37	Add to
019	181003369/0	ENGINE BRAKE LEVER	£15.59	Add to
020	181003371/0	CLUTCH DRIVE LEVER	£15.59	Add to
