TRANSMISSION

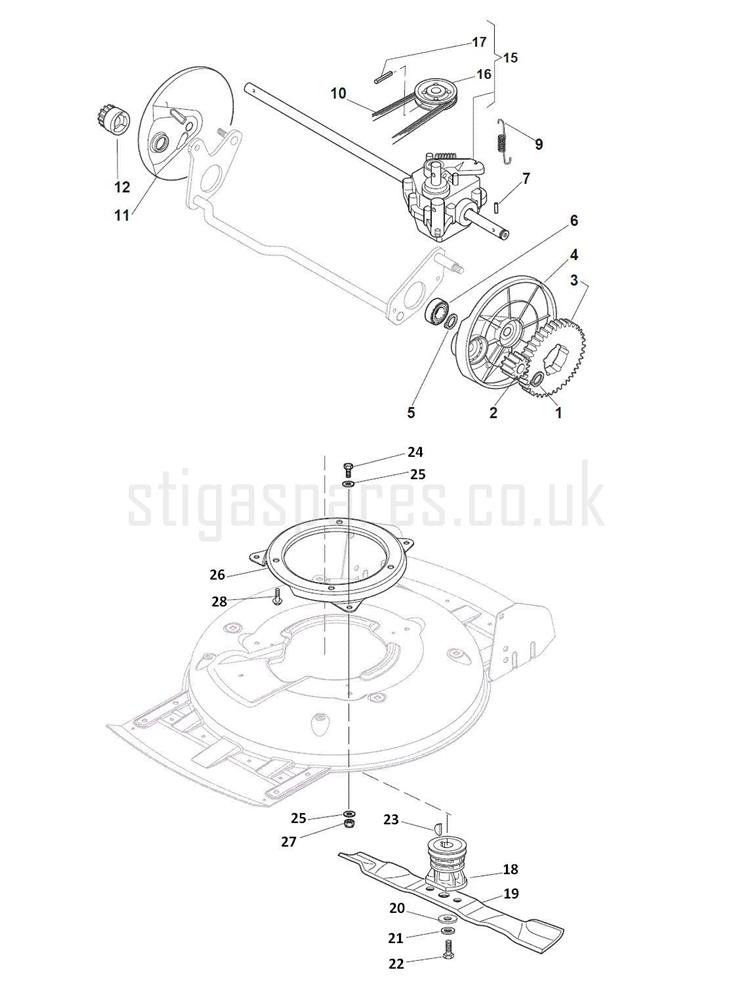

TRANSMISSION assembly details for Stiga MULTICLIP PLUS 50S (ST45 OHV) 291502248/S14 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112608600/0	CIRCLIP D=12	£2.08	Add to
002	122570120/1	LEFT PINION Z10 GEAR(METAL)was Plastic	£8.75	Add to
003	122120105/1	DRIVE GEAR WHEEL	£10.82	Add to
004	322600267/0	INNER WHEEL COVER	£6.09	Add to
005	112608600/0	CIRCLIP D=12	£2.08	Add to
006	119216035/0	BEARING 6001 2RS (12 x 28 x 8)	£3.83	Add to
007	122753000/0	PIN D=5.2 x 25.65	£2.06	Add to
009	122450439/0	TENSION SPRING	£3.69	Add to
010	135064100/0	TRAPEZOIDAL BELT Z30	£10.50	Add to
011	322600267/0	INNER WHEEL COVER	£6.09	Add to
012	122570110/1	RIGHT PINION Z10 GEAR(METAL)was Plastic	£8.52	Add to
015	181003109/1A	GEARBOX [GREY] RATIO 6:1	£162.54	Add to
016	122601909/0	PULLEY	£6.01	Add to
017	112645705/0	ROLL PIN D=5 x 32	£2.02	Add to
018	122465607/4	BLADE BOSS D=22.2mm	£10.09	Add to
019	181004146/0	MULTICLIP BLADE 48/50cm	£15.94	Add to
020	122160400/0	SPRING WASHER 50 x 2 x 10.2	£2.18	Add to
021	112523080/0	WASHER M10 11 x 30 x 2.5	£2.06	Add to
022	112735698/0	HEX-HEAD SCREW 3/8" x 2"	£2.02	Add to
023	112139100/0	WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40	£2.06	Add to
024	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
025	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
026	322207219/1	ENGINE MOUNTING PLATE [BLACK]	£24.81	Add to
027	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
028	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
